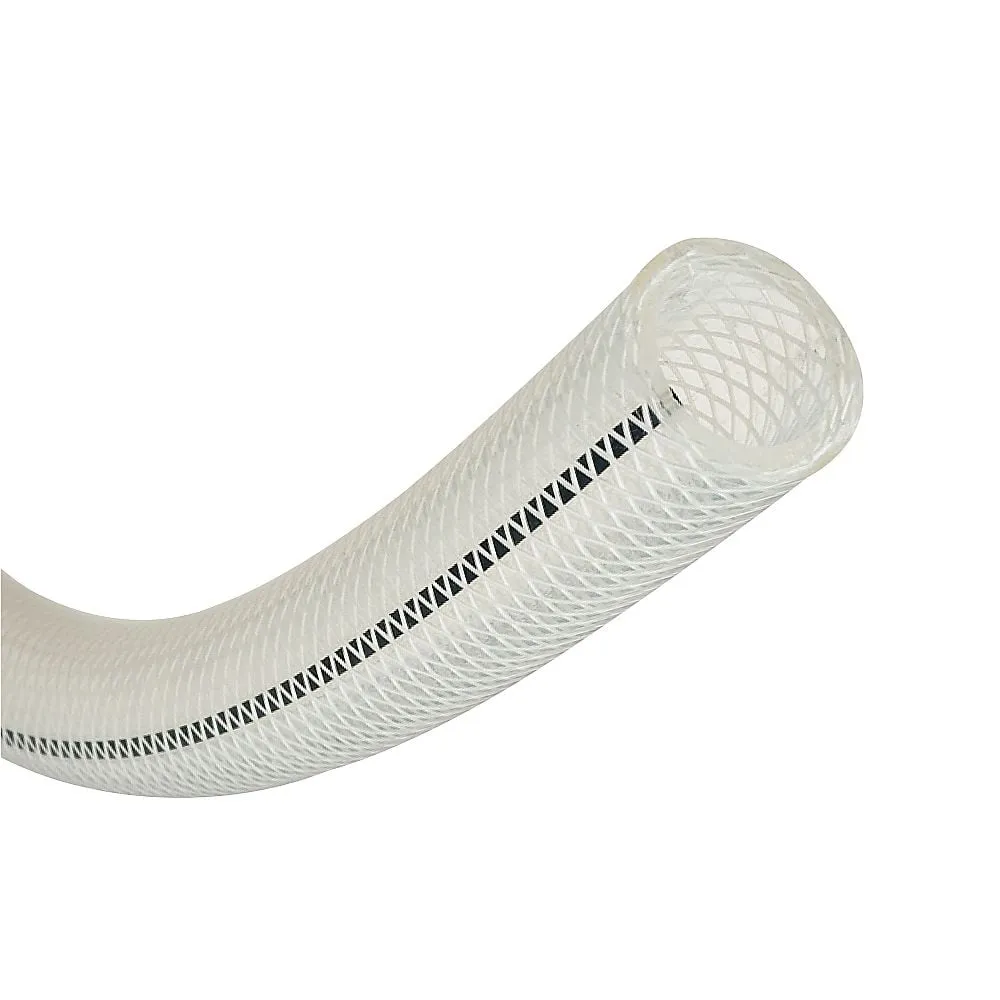

1-1717-04-01 Chemical-Resistant Antistatic Fluorine Hose TOYOFUSSO(R) E Hose Inner Diameter 25 mm x Outer Diameter 33 mm Length 1 m FFE-25-1
Product Description
Product Model: 1-1717-04-01Product Brand: TOYOX CO., LT […]
Contact Us
Product Details
Product Model: 1-1717-04-01
Product Brand: TOYOX CO., LTD.
Features
- "Anti-static": A fluorine hose with an anti-static belt in the hose to maintain the anti-static effect for a long time.
- "Tetrafluoride fluororesin": Tetrafluoride fluororesin is ***d inside the hose. Utilizing characteristics such as chemical resistance, non-elution, non-adhesion, and low odor, it can be ***d as a hose for all kinds of equipment piping.
- "Versatile": Can be ***d as a hose for transporting chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
- "Coloring and flavoring" The inner surface is non-stick and excellent in water repellency, so it is hard to color, and has little effect on smell and taste.
- "Cleanability": Since the inner surface of the hose is non-adhesive and excellent in water repellency, fluid does not remain in the hose and cleaning is easy.
- Pressure bearing blade hose
Spec
- Inner Diameter x Outer Diameter (mm): 25 x 33
- Pressure (MPa): 0~0.6 (23°C), 0~0.3 (80°C)
- Operating temperature range: -20~80°C
- Length: 1 m
- Material: Body/4Fluorinated Fluororesin (Modified ETFE), Reinforcement/Polyester Thread, Conductive Band/Carbon
- Minimum b*** radius: 175 mm
- RoHS3 (EU)2015/863 Certificates can be issued
