laboratoryinstruments

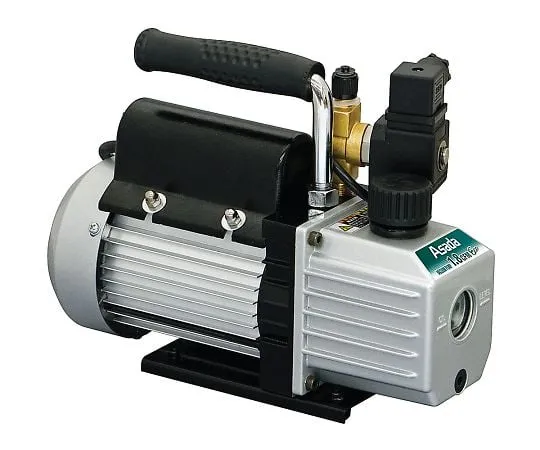

3-8405-01 Vacuum Pump WV210
Product Description
Product Model: 3-8405-01Product Brand: ASADA CORPORATIO […]
Contact Us
Product Details
Product Model: 3-8405-01
Product Brand: ASADA CORPORATION
Features
- Suitable for vacuuming small to 5HP class refrigeration and air conditioning systems.
- Built-in metal mesh filter suppresses oil mist.
- With a large sight glass, it is easy to check the oil level and the deterioration of the oil.
Spec
- Specification: Main unit
- Exhaust speed : 50Hz/42 L/min , 60Hz/50 L/min
- Vacuum degree: 3.0 Pa (25 microns)
- pumps Speed: 50Hz/2880 min -1, 60Hz/3440 min -1
- Oil amount: 150mL
- Inhalation port: 1/4 '', 5/16 '' (Flair Ox)
- Motor: 100V 200W
- Power supply: AC100V 50/60Hz
- Size: 260 x 105 x 200mm
- Weight: 5kg
- Accessories: vacuum Pumps oil (0.23 L), different diameter adapter (1/4 '' Female x M10 Male)
