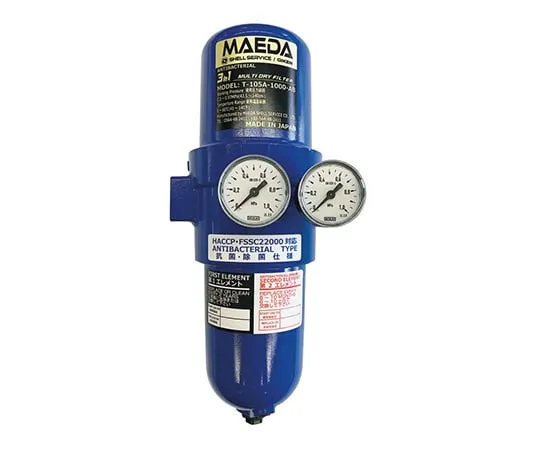

3-8394-01 Compressed Air Filter (3-In-1 Multi-Dry Filter) 300L/min Rc1/4 T-103A-1000
Product Description
Product Model: 3-8394-01Product Brand: MAEDA SHELL SERV […]
Contact Us
Product Details
Product Model: 3-8394-01
Product Brand: MAEDA SHELL SERVICE Co., Ltd.
Features
- One unit is equipped with the filter function for three units.
- Energy-saving filter with low pressure loss.
- The structure is simple and the elements can be easily replaced.
Spec
- Connection port diameter (Rc): 1/4
- Maximum flow rate (L/min): 300 * maximum flow rate is at 0.7 MPa.
- pressure of *** : 0.3 to : 0.97MPa
- Operating temperature: 5 to 60 °C
- Solid particle removal: 0.01 μm
- Secondary oil concentration: 0.01 mg/m3 or less
- Outer dimensions: 92 x 101 x 262mm
- Weight: 1.3kg
- *We also have a lineup of antibacterial and bacteria elimination products. Please contact us.
