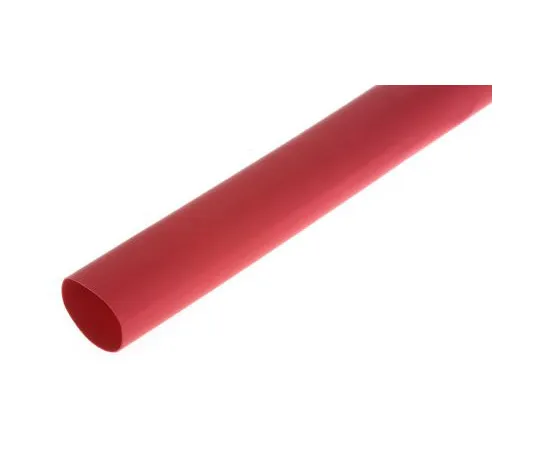

63-4612-64 RS PRO Heat Shrink Tube, Red 12.7mm Sleeve Dia. x 1.2m Length 2:1 Ratio 398-278
Product Description
Product Model: 63-4612-64Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4612-64
Product Brand: RS PRO
Features
- MIL SAE-AMS-DTL 23053/5 Class 1 (excluding clear type) IEC 60684-3-212 A; B, BS3G 198 Part 3 11b, VG 95343 Part 5 A; B
- SAE-AMS-DTL-23053/5 Class 2
- Polyolefin Heat-Shrinkable Tube 2:1
- This flexible heat-shrinkable polyolefin tube is ideal for wiring, harness sleeves, identification coloring, insulation, protection, and coating in the electrical, automotive, and aviation industries.
- Features and benefits: Supports a full range of colors, including new phase colors in accordance with BS7671 Shipping length 1.2 m Very flexible Flame retardant (except clear) High mechanical/electrical strength Corrosion resistance and solvent resistance Diameter size listed is the minimum size for shipping shrinkage
Spec
- Sleeve Diameter:12.7mm
- Shrunk Diameter:6.4mm
- Colour:Red
- Sleeve Type:Heat Shrink
- Adhesive Lined:No
- Shrink Ratio:2:1
- Sleeve Length:1.2m
- Material:Polyolefin
- Flame Retardant:Yes
- Halogen Free:No
- CODE No.:398-278
