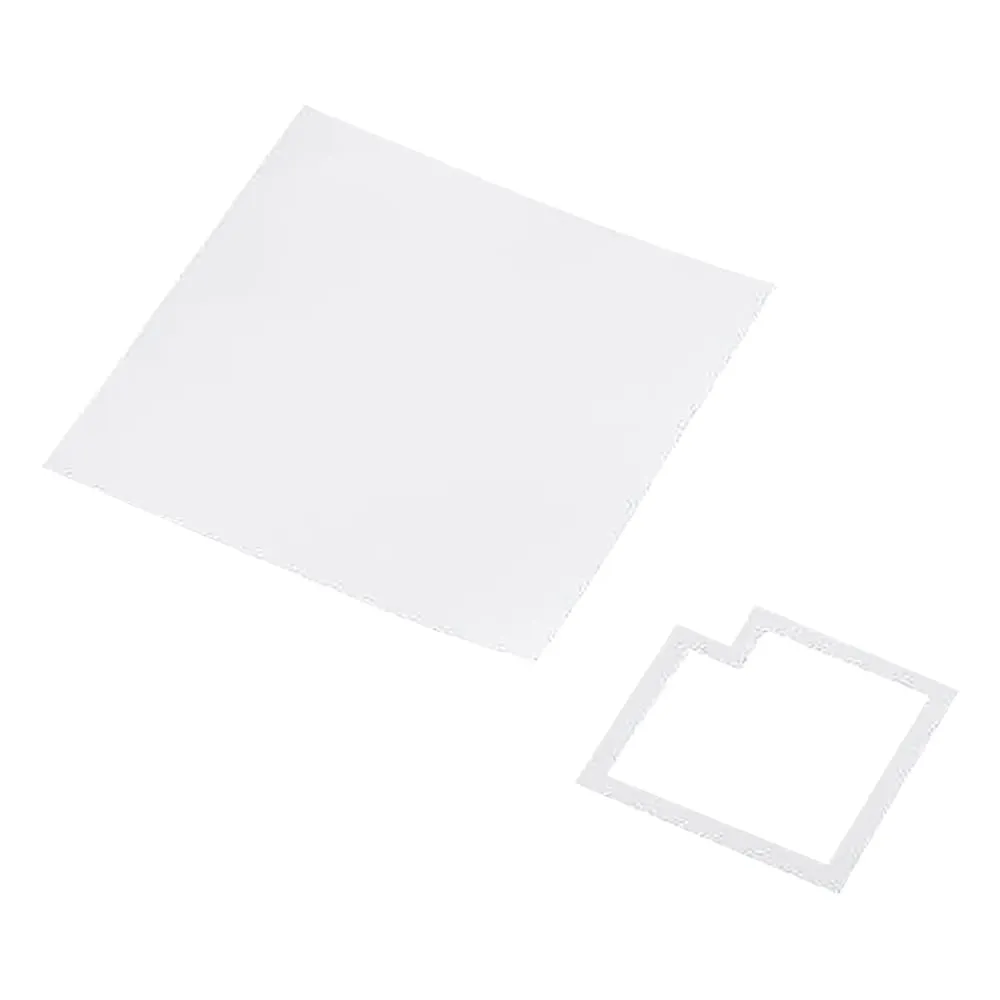

3-2361-01 Hyper Sheet(R) Gasket 500 x 500 x 1.0 HS-1
model:
3-2361-01
category:
automaticdiluter
Product Description
Product Model: 3-2361-01 Features It has excellent chem […]
Contact Us
Product Details
Product Model: 3-2361-01
Features
- It has excellent chemical resistance and can be ***d in all fluids except high-temperature and high-pressure fluorine gas, molten alkali metal, and polymerizable monomers (it can be ***d at pH0~ 14).
- It bl***s easily and can be easily sealed even with a slight irregularity. It is also resistant to stress fluctuations and provides stable sealing for a long time.
- With 100%PTFE, no impurities are eluted, and it has excellent heat resistance and sliding properties.
Spec
- Model number: HS-1
- Size (mm): 500 x 500 x 1.0
- Material: Expanded PTFE (PTFE 100%) (fluorine resin)
- Operating temperature range: -240 - 315℃
- Gasket factor (m): 2.5
- Minimum design tightening pressure (y): 19.6N/mm2
- Pressure resistance: Vacuum to 20.6MPa
- *This product, Not ***d for process under GMP management and process in which medical device materials, food products, and cosmetics are touched directly. *We have other thickness. Please contact with us. *According to desired size, Cut processing is possible (maximum length 1500 x 1500mm).
