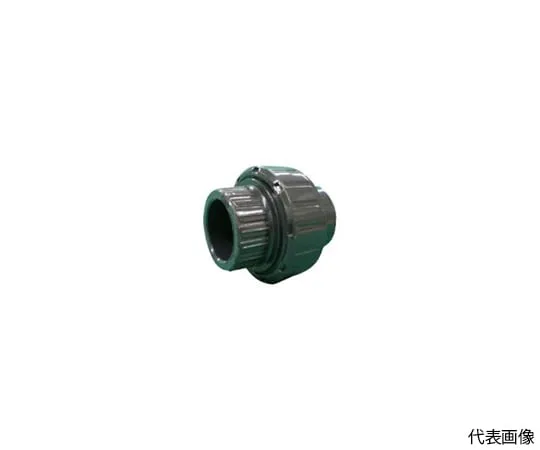

62-3589-28 Compact Type Union Joint PVC/EPDM TS Style 13 A UN13S
Product Description
Product Model: 62-3589-28Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3589-28
Product Brand: SEKISUI
Features
- Union joint made of resin.
- Body and parts are made of rigid polyvinyl chloride (PVC) and have excellent chemical resistance.
- By loosening the union nut, it can be removed from piping after construction.
- The surface pipe dimension is compact and space-saving piping is possible.
- Chemical plant chemical piping, semiconductor plant pure water piping, fishery plant seawater piping, food plant wastewater treatment line.
Spec
- PVC Pipe Nominal Diameter: 13
- Dimension (mm) D: 40
- Dimension (mm) L: 42
- Body: PVC
- O-rings: EPDM
- L:42mm
- Du:40mm
- O-rings: EPDM
- Operating temperature range: 0~50°C
- Maximum Allowable Pressure: 1.0 MPa (Normal Temperature)
- Material/Finish: Body/Hard Vinyl Chloride (PVC), O-Ring/EPDM, TS Type
- Set Contents/Accessories: Oil proof (clean) can be ***d separately.
- Note:Not compatible with Eslon Ball Valve.
- Country of Origin: Taiwan
- Securities Code: 494-9072
