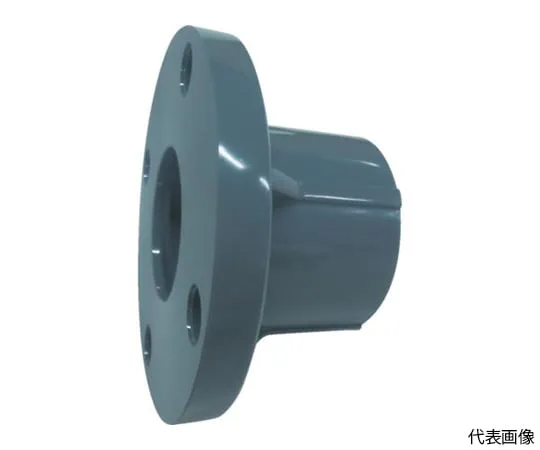

62-3584-29 TS Flange JIS5K PVC 65 A TSF655
Product Description
Product Model: 62-3584-29Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3584-29
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- For chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and piping in wastewater treatment lines in food factories.
Spec
- Nominal Diameter A: 65
- Nominal Diameter B: 2 1/2
- Inner diameter (mm): 67
- Outer Diameter (mm): 155
- Thickness (mm): 14
- Number of Bolt Holes (pcs): 4
- Bolt Hole Diameter (mm): 15
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 130
- L(mm):70
- Number of holes (pcs): 4
- Nominal Diameter: 2 1/2B
- Material: Rigid Vinyl Chloride (PVC)
- PVC Pipe Nominal Diameter: 65
- Size: 65 A
- Applicable Bolt Under Neck (mm): 55
- Applicable bolt nominal (mm): M12
- Maximum Allowable Pressure: 0.5 MPa (20°C)
- JIS5K Specification
- Maximum Operating Temperature: 60°C
- Conform to JIS B2220
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful of ventilation when using the adhesive.
- Please *** standard construction method.
- Pay attention to the tightening torque.
- Please be careful not to tighten it one way.
- Country of Origin: Taiwan
- Securities Code: 494-9129
