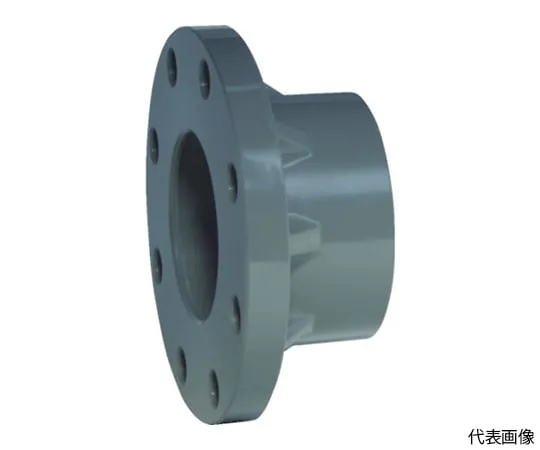

Spec

• Nominal Diameter A: 50
• Nominal Diameter B: 2
• Inner diameter (mm): 52
• Outer Diameter (mm): 155
• Thickness (mm): 20
• Number of Bolt Holes (pcs): 4
• Bolt Hole Diameter (mm): 19
• Working pressure (K): 10
• Bolt Hole Center Diameter (mm): 120
• L(mm):70
• Number of holes (pcs): 4
• Material: Rigid Vinyl Chloride (PVC)
• PVC Pipe Nominal Diameter: 50
• Nominal Diameter: 2B
• Size: 50 A
• Applicable Bolt Under Neck (mm): 70
• Applicable bolt nominal (mm): M16
• L(mm):70
• Maximum Allowable Pressure: 1.0 MPa (20°C)
• JIS10K Specification
• Maximum Operating Temperature: 60°C
• Conform to JIS B2220
• Material/Finish: Hard Polyvinyl Chloride (PVC)
• Note:Please be careful of ventilation when using the adhesive.
• Please *** standard construction method.
• Pay attention to the tightening torque.
• Please be careful not to tighten it one way.
• Country of Origin: Taiwan
• Securities Code: 494-8980
