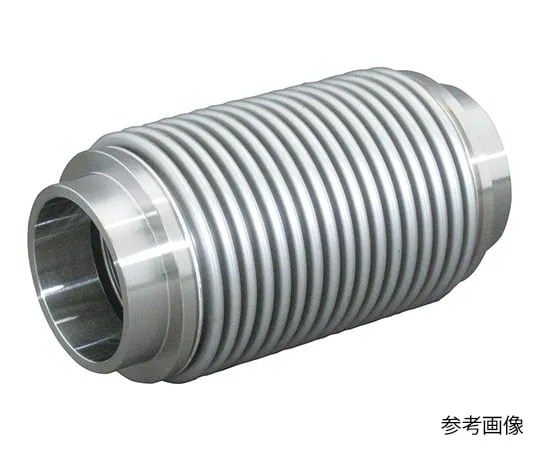

3-8155-01 Molded Bellows (With End Fitting) PF10
Product Description
Product Model: 3-8155-01Product Brand: IRIE KOKEN Spec […]
Contact Us
Product Details
Product Model: 3-8155-01
Product Brand: IRIE KOKEN
Spec
- Model number: PF 10
- Pressure conditions: internal/vacuum, external/atmospheric
- Temperature condition: 20 °C (Maximum baking time: 250 °C)
- Material : Bellows/Stainless steel (SUS316L) , Flange/Stainless steel (SUS316)
- Leak amount: 1 x 10 ^ -9 Pa · m3/s or less
- Repeated life: 10000 cycles
- flange shapes: *** pipes
- Size table (Unit:mm)
- *Bi: 12.9
- *Bo: 19
- *L: 50
- *D: 17.3
- *t1: 1.65
- *T: 10
- *L Operating Range: 67 to 73
- Spring constant (N/mm): 15.7
- Effective area (cm2): 2
