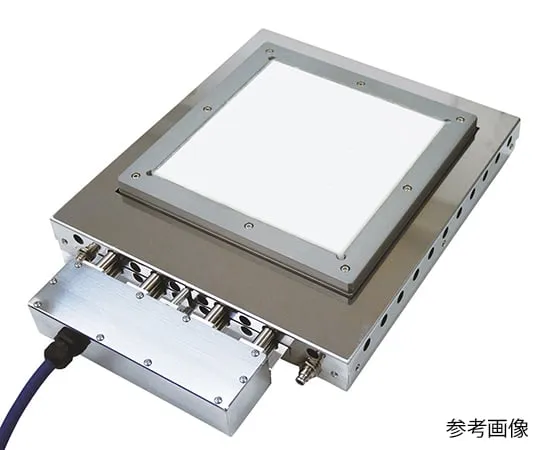

3-8115-01 Film Chuck Hot Plate 120 x 120 Waterproof PA2012-WPFC
model:
3-8115-01
category:
laboratoryinstruments
Product Description
Product Model: 3-8115-01 Features The suction part is a […]
Contact Us
Product Details
Product Model: 3-8115-01
Features
- The suction part is a ceramic sintered body that can precisely heat a film-like work.
- It is also suitable for in-device embedded applications.
Spec
- Model number: PA2012-WPFC
- Top board absorption size (mm): 120 x 120
- Waterproof: ○
- Operating temperature: R.T. to 200 °C
- Temperature distribution accuracy: ±1.5%
- Plate portion: ceramic porous body
- Vacuum port: One-touch fitting for outer diameter φ6mm
- Recomm***ed vacuum Pumps: Diaphragm type Pumps (exhaust speed 20 L/min)
- Power supply: AC100V 50/60Hz
- Electric capacity: 800W
- power supply cable length : 1.5 m (Top R 3.5 crimp terminal)
- Sensor cable length: 1.5 m (Top R 3.5 crimp terminal)
