laboratoryinstruments

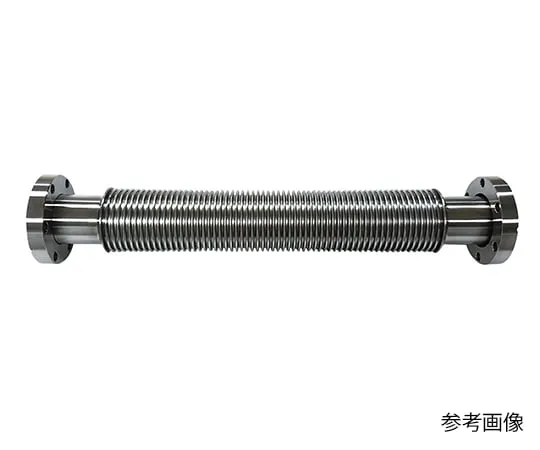

3-8098-01 Flexible Vacuum Tube (CF Flange) VFP2034X500
Product Description
Product Model: 3-8098-01Product Brand: IRIE KOKEN Spec […]
Contact Us
Product Details
Product Model: 3-8098-01
Product Brand: IRIE KOKEN
Spec
- Model number: VFP2034 x 500
- Material : Stainless steel (SUS304)
- Pressure conditions: internal/vacuum, external/atmospheric
- Temperature conditions: R.T. (Maximum baking time: 250 °C)
- Leak amount: 1 x 10 ^ -9 Pa · m3/s or less
- Flange: Fixed x Rotate
- Size table (Unit:mm)
- *Bi: 25
- *Bo: 32.2
- *d: 18
- *D: 33.8
- *PCD: 27
- *Mounting hole: 6 -4.4
- *A: 50
- RoHS3 (EU)2015/863 Certificates can be issued
