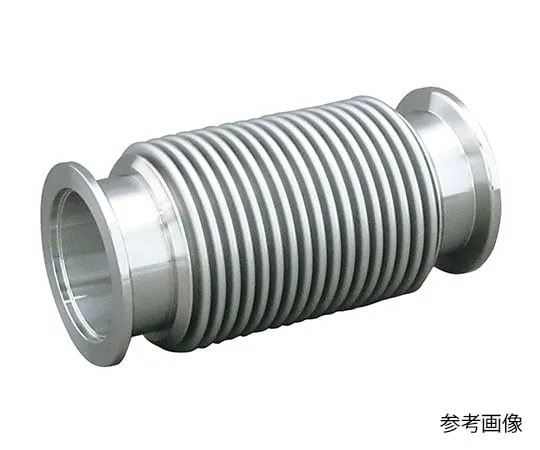

3-8088-01 Molded Bellows (ISO KF Flange) KF10
Product Description
Product Model: 3-8088-01Product Brand: IRIE KOKEN Spec […]
Contact Us
Product Details
Product Model: 3-8088-01
Product Brand: IRIE KOKEN
Spec
- Model number: KF10
- Pressure conditions: internal/vacuum, external/atmospheric
- Temperature condition: 20 °C (Maximum baking time: 250 °C)
- Material : Bellows/Stainless steel (SUS316L) , Flange/Stainless steel (SUS316)
- Leak amount: 1 x 10 ^ -9 Pa · m3/s or less
- Repeated life: 10000 cycles
- flange shapes: ISO KFflanges
- Size table (Unit:mm)
- *Bi: 12.9
- *Bo: 19
- *L: 50
- *D: 30
- *A: 12.2
- *t: 20
- *L Operating range: 87 to 93
- Spring constant (N/mm): 15.7
- Effective area (cm2): 2
