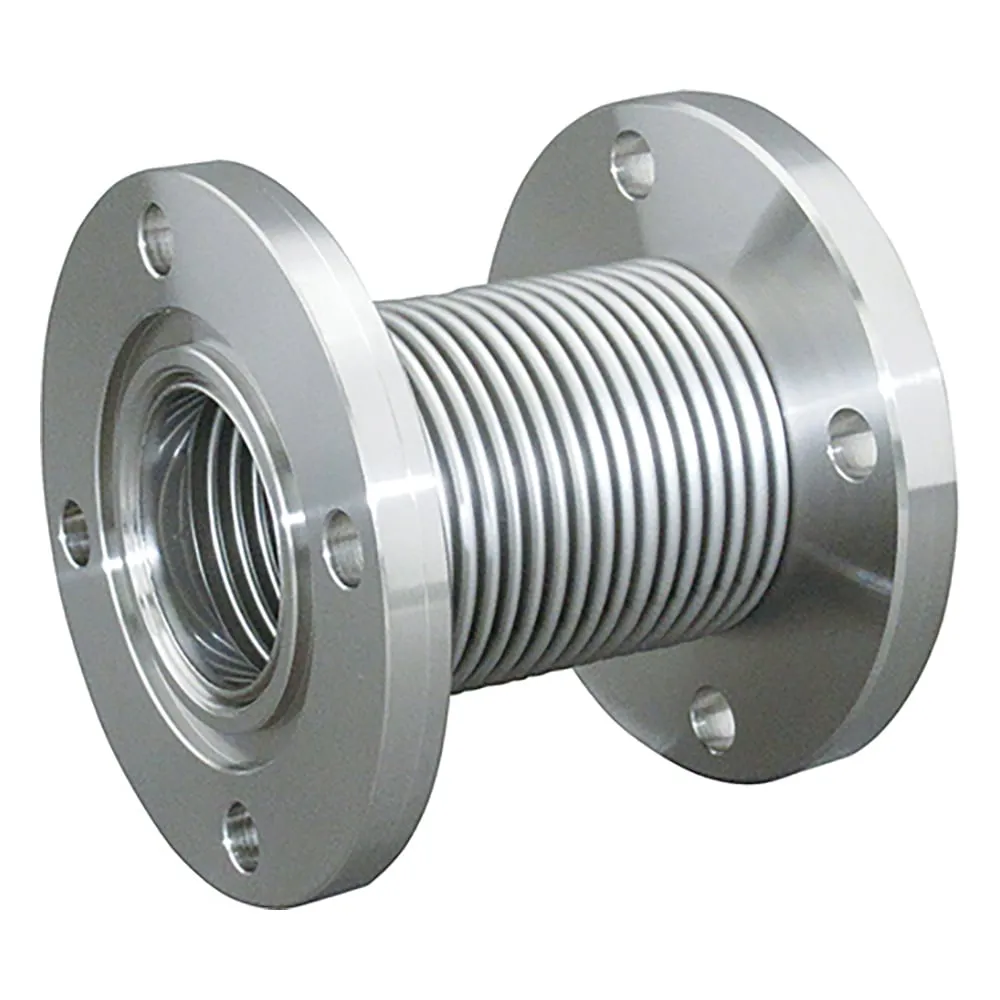

3-8087-01 Molded Bellows (JIS Vacuum Flange) IF20
Product Description
Product Model: 3-8087-01Product Brand: IRIE KOKEN Spec […]
Contact Us
Product Details
Product Model: 3-8087-01
Product Brand: IRIE KOKEN
Spec
- Model number: IF 20
- Pressure conditions: internal/vacuum, external/atmospheric
- Temperature condition: 20 °C (Maximum baking time: 250 °C)
- Material : Bellows/Stainless steel (SUS316L) , Flange/Stainless steel (SUS304)
- Operating conditions: Only axial displacement
- Leak amount: 1 x 10 ^ -7 Pa · m3/s or less
- Repeated life: 10000 cycles
- Flange shape: JIS B 2290 (Flange A/VG, Flange B/VF)
- Size table (Unit:mm)
- *Bi: 22.9
- *Bo: 33
- *L: 44
- *D: 80
- *T: 8
- *C: 60
- *Mounting hole: 4 -10
- *L Operating range: 54 to 64
- Spring constant (N/mm): 10
- Effective area (cm2): 6.1
