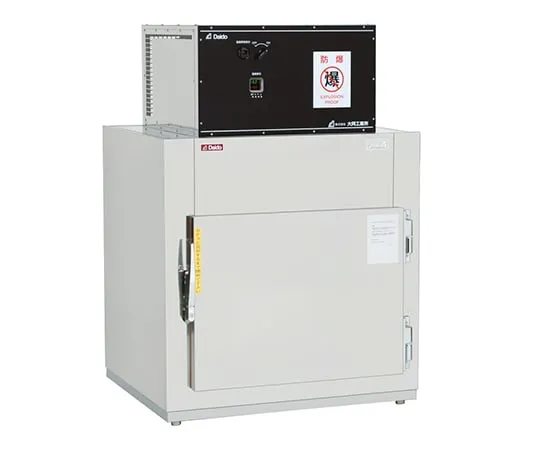

3-7903-01 Explosion-proof constant temperature chamber DTI-1A-230RH
model:
3-7903-01
category:
laboratoryinstruments
Product Description
Product Model: 3-7903-01 Features Since it passed the e […]
Contact Us
Product Details
Product Model: 3-7903-01
Features
- Since it passed the explosion-proof test, it can be installed in Class 1 and Class 2 dangerous places.
- It can also be ***d to preserve flammable solvents within the range of explosion-proof performance.
Spec
- Model number: DTI -1 A -230 RH
- external dimension (mm): 1000 x 1050 x 1475
- inner size (mm): 894 x 544 x 657
- convection formula : Forced convection formula
- temperature settings range: 5 to 50 ° C
- Temperature control method: PID control
- material : Main body/Stainless steel (SUS304) , Insulation/foam polyurethane
- power supply - Single Phase 100 V 50/60 Hz 30 A (power cord length: 3m/plug separately)
- Safety device: Heater over rise prevention function, detection of temperature abnormality and pressure drop, alarm lamp lighting in case of temperature abnormality
- explosion-proof performance: fd2G4
- Weight: Approximately 270 kg
- Accessories: shelf board × 3 pieces
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
