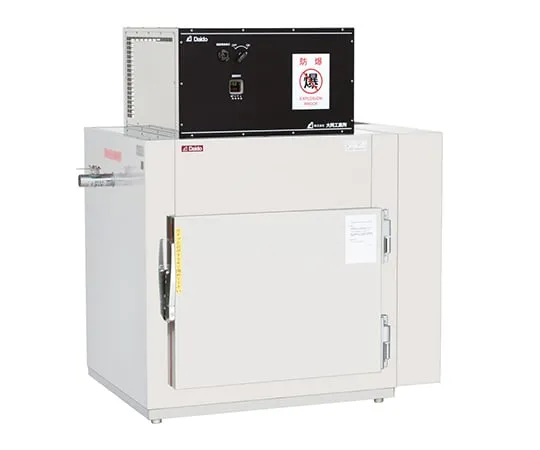

3-7902-01 Explosion-proof constant temperature dryer DTI-1A-230H
model:
3-7902-01
category:
laboratoryinstruments
Product Description
Product Model: 3-7902-01 Features Since it passed the e […]
Contact Us
Product Details
Product Model: 3-7902-01
Features
- Since it passed the explosion-proof test, it can be installed in Class 1 and Class 2 dangerous places.
- Can also be ***d to dry flammable solvents within the range of explosion-proof performance.
Spec
- Model: DTI -1 A -230 H
- external dimension (mm): 1200 x 900 x 1475
- inner size (mm): 844 x 494 x 609
- convection formula : Forced convection formula
- temperature settings range: 50 to 115 ° C
- Temperature control method: PID control
- material: Frame/Stainless steel (SUS304), Insulation/Glass wool
- power supply - Single Phase 100 V 50/60 Hz 30 A (power cord length: 3m/plug separately)
- Safety device: Heater over rise prevention function, alarm lamp is turned on when temperature is abnormal.
- explosion-proof performance: sd2G3
- Weight: Approximately 280 kg
- Accessories: shelf board × 3 pieces
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
