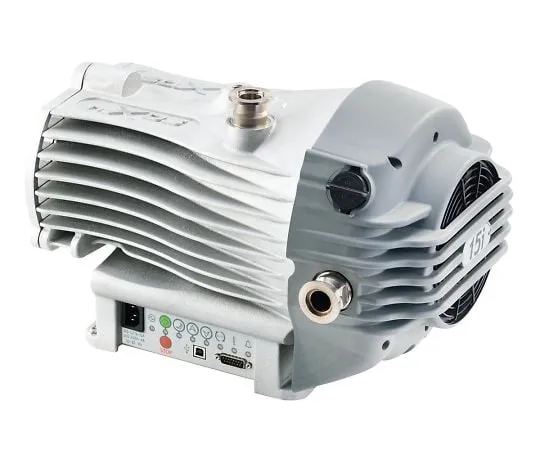

3-744-01 Scroll Pump nXDS6i
Product Description
Product Model: 3-744-01Product Brand: Edwards Ltd Featu […]
Contact Us
Product Details
Product Model: 3-744-01
Product Brand: Edwards Ltd
Features
- The nXDS dry scroll pump offers best-in-class performance with superior pumping capabilities, vacuum reach and modern design features.
- In addition to increasing exhaust speed, nXDS provides low reach pressure, low power consumption and low noise.
- Gas ballast enables the discharge of condensable vapors containing water, solvents, dilute acids and bases.
- The nXDS pump also features the latest chip sealing technology, which greatly increases the time between chip seal replacements.
Spec
- Exhaust speed (L/min): 103
- Pressure to reach (Pa): 2
- Water vapor treatment: 110 g/day
- Noise level: 52dB (A)
- Leakage amount: < 1 x 10 ^ -4 Pa ・ L/sec
- Intake/Exhaust Air Diameter (internal mesh size): NW25/NW 25
- Gas Connection material: Aluminium
- Power supply: 100 to 127 V, 200 to 240 V
- Motor output: 260W
- Size: 432 x 265 x 286mm
- Weight: 26.2kg
*This product might require extra fees.
