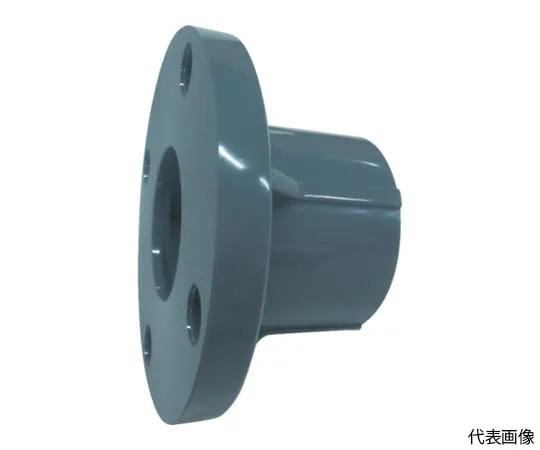

62-3584-27 TS Flange JIS5K PVC 40 A TSF405
Product Description
Product Model: 62-3584-27Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3584-27
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- For chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and piping in wastewater treatment lines in food factories.
Spec
- Nominal Diameter A: 40
- Nominal Diameter B: 1 1/2
- Inner diameter (mm): 41
- Outer Diameter (mm): 120
- Thickness (mm): 12
- Number of Bolt Holes (pcs): 4
- Bolt Hole Diameter (mm): 15
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 95
- L(mm):61
- Number of holes (pcs): 4
- Nominal Diameter: 1 1/2B
- PVC Pipe Nominal Diameter: 40
- Material: Rigid Vinyl Chloride (PVC)
- Size: 40 A
- Applicable Bolt Under Neck (mm): 50
- Applicable bolt nominal (mm): M12
- Maximum Allowable Pressure: 0.5 MPa (20°C)
- JIS5K Specification
- Maximum Operating Temperature: 60°C
- Conform to JIS B2220
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful of ventilation when using the adhesive.
- Please *** standard construction method.
- Pay attention to the tightening torque.
- Please be careful not to tighten it one way.
- Country of Origin: Taiwan
- Securities Code: 494-9307
Related product recommendations
You may also be interested in the following products
gasmonitors
gasmonitors
62-6121-97 JIS Piping Identification Sticker AS Type (Plain) Dark Red Plain (Large) 1 Set (10 Sheets) AS-2-30L
model: 62-6121-97
brand: UNIT SAFETY SIGNS CO., LTD.
gasmonitors
64-3439-06 Super Erecta Shelf W 1212 x D 613 x H 2197mm (P) 4 stages with DB LS1220P2200W4
model: 64-3439-06
brand: ERECTA International Corporation
gasmonitors

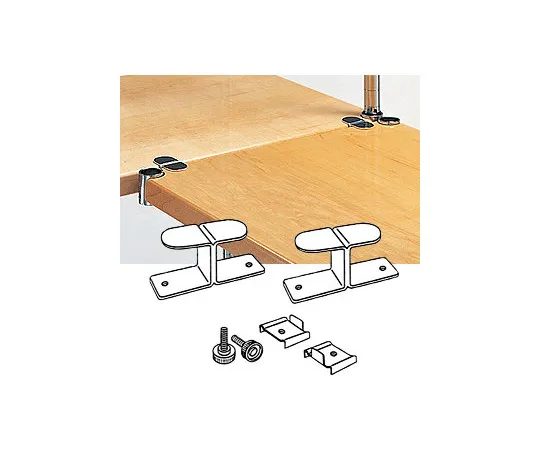

63-2827-23 ［Discontinued］Home Erector Wood & Wood Shelf Connectors (2 Pieces)
