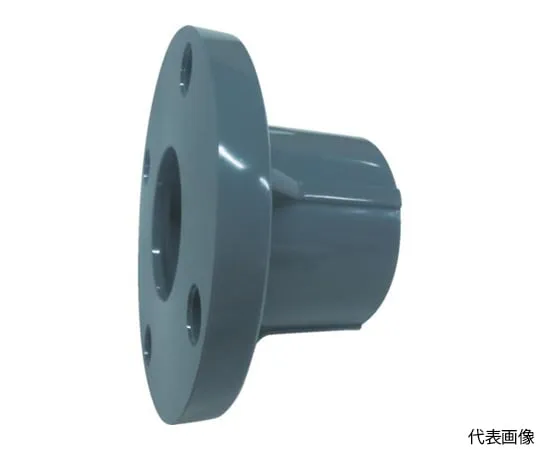

62-3584-24 TS Flange JIS5K PVC 25 A TSF255
Product Description
Product Model: 62-3584-24Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3584-24
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- For chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and piping in wastewater treatment lines in food factories.
Spec
- Nominal Diameter A: 25
- Nominal Diameter B: 1
- Inner diameter (mm): 25
- Outer Diameter (mm): 95
- Thickness (mm): 10
- Number of Bolt Holes (pcs): 4
- Bolt Hole Diameter (mm): 12
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 75
- L(mm):45
- Number of holes (pcs): 4
- Nominal Diameter: 1B
- Size: 25 A
- Material: Rigid Vinyl Chloride (PVC)
- PVC Pipe Nominal Diameter: 25
- Applicable Bolt Under Neck (mm): 45
- Applicable bolt nominal (mm): M10
- Maximum Allowable Pressure: 0.5 MPa (20°C)
- JIS5K Specification
- Maximum Operating Temperature: 60°C
- Conform to JIS B2220
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful of ventilation when using the adhesive.
- Please *** standard construction method.
- Pay attention to the tightening torque.
- Please be careful not to tighten it one way.
- Country of Origin: Taiwan
- Securities Code: 494-9323
