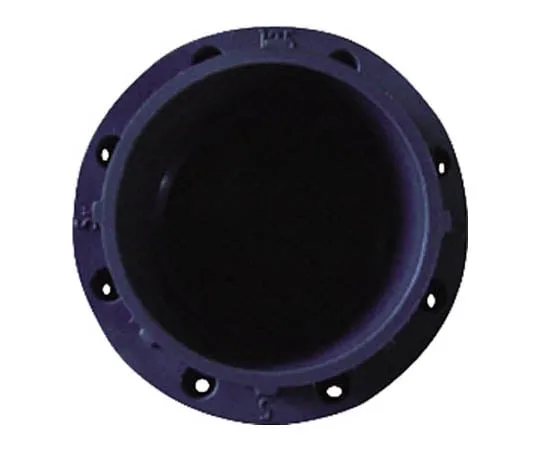

62-3584-20 TS Flange JIS5K PVC 125 A TSF1Q5
Product Description
Product Model: 62-3584-20Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3584-20
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance. Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
- *Please be careful when using the adhesive.
- *Please *** standard construction method.
- *Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- *Pay attention to the tightening torque.
Spec
- Nominal Diameter A: 125
- Nominal Diameter B: 5
- Inner diameter (mm): 125
- Outer Diameter (mm): 235
- Thickness (mm): 16
- Number of Bolt Holes (pcs): 8
- Bolt Hole Diameter (mm): 19
- Working pressure (K): 10
- Maximum Operating Temperature: 60°C
- Nominal Diameter: 5B
- Size: 125 A
- PVC Pipe Nominal Diameter: 125
- Material: Rigid Vinyl Chloride (PVC)
- Number of holes (pcs): 8
- Maximum Allowable Pressure: 0.5 MPa (at20°C)
- JIS5K Specification
- Flange dimensions conform to JIS5K (JISB2210).
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful when using the adhesive.
- Note:Please *** standard construction method.
- Note:Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Note:Pay attention to the tightening torque.
- Country of Origin: Taiwan
- Securities Code: 494-9285
