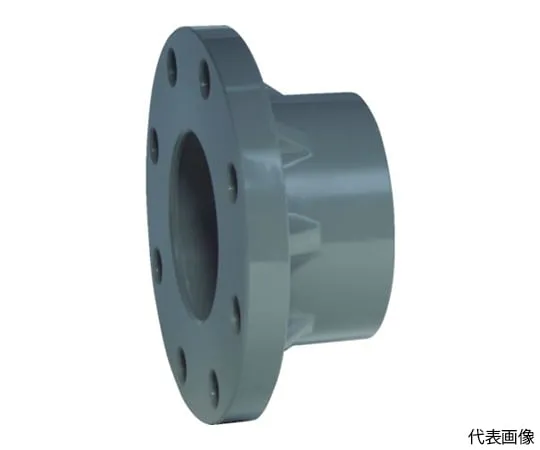

62-3584-18 TS Flange JIS10K PVC 100 A TSF1H
Product Description
Product Model: 62-3584-18Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3584-18
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- For chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and piping in wastewater treatment lines in food factories.
Spec
- Nominal Diameter A: 100
- Nominal Diameter B: 4
- Inner diameter (mm): 100
- Outer Diameter (mm): 210
- Thickness (mm): 22
- Number of Bolt Holes (pcs): 8
- Bolt Hole Diameter (mm): 19
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 175
- L(mm):90
- Number of holes (pcs): 8
- PVC Pipe Nominal Diameter: 100
- Material: Rigid Vinyl Chloride (PVC)
- Nominal Diameter: 4B
- Size: 100 A
- L(mm):90
- Applicable Bolt Nominal (mm)
- Applicable Bolt Under Neck (mm)
- Maximum Allowable Pressure: 1.0 MPa (20°C)
- JIS10K Specification
- Maximum Operating Temperature: 60°C
- Conform to JIS B2220
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful of ventilation when using the adhesive.
- Please *** standard construction method.
- Pay attention to the tightening torque.
- Please be careful not to tighten it one way.
- Country of Origin: Taiwan
- Securities Code: 494-9269
