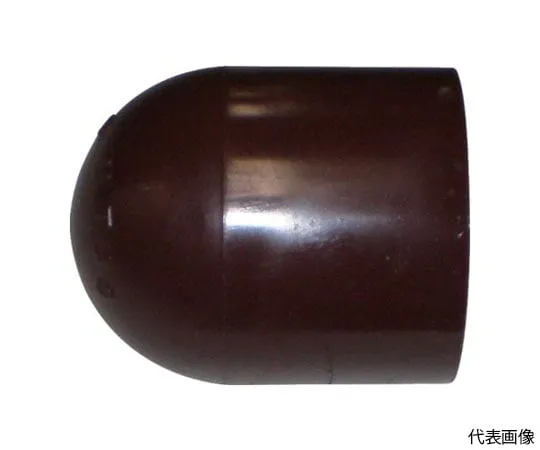

62-3577-29 HT Joint C (Cap) 16 THC16
Product Description
Product Model: 62-3577-29Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3577-29
Product Brand: SEKISUI
Features
- HT resin joint with excellent heat resistance.
- For *** with Eslon HT pipes.
- Compared to conventional vinyl chloride pipes, it can be ***d stably at high temperatures.
- For *** with Eslon HT pipes.
- For hot water supply, heating and cooling piping, and hot spring piping.
- Used for hot water supply, heating and cooling piping, and hot spring piping.
Spec
- PVC Pipe Nominal Diameter: 16
- Dimension (mm) D: 29
- Dimension (mm) D1:29
- Dimension (mm) L: 39.5
- Color: Red Brown
- Material: Heat resistant hard polyvinyl chloride
- Maximum Operating Temperature: 90°C
- Each dimension has a tolerance
- Operating temperature range: 5~90°C
- Maximum Working Pressure: 0.2 MPa
- JIS K6777 Standard Product
- Material/Finish: Heat-resistant Hard Polyvinyl Chloride
- Note:In particular, please be careful when arousing.
- Please refer to the reference materials (construction, performance and safety precautions) of the "General Catalog" of the Eslon Pipe Catalog. This can lead to serious accidents such as water leakage.
- Country of origin: Japan
- Securities Code: 494-9226
