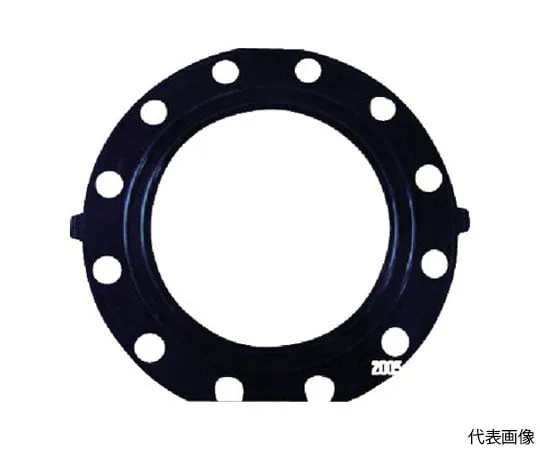

62-3490-89 Packing EPDM JIS10K 150 A PE1FC
Product Description
Product Model: 62-3490-89Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3490-89
Product Brand: SEKISUI
Features
- A rubber (EPDM) packing with excellent corrosion resistance.
- Can be ***d safely with high water pressure without being corroded by acidic or alkaline chemicals or seawater.
- With double round protruding ribs, it has high sealing properties.
- Chemical plant chemical piping, semiconductor plant pure piping, fishery plant seawater piping, food plant wastewater treatment line, etc.
Spec
- Nominal Diameter A: 150
- Nominal Diameter B: 6
- Inner diameter (mm): 155
- Outer Diameter (mm): 378
- Thickness (mm): 3
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 240
- Number of Bolt Holes (pcs): 8
- Bolt Hole Diameter (mm): 23
- Recomm***ed Tightening Torque: 55 N/m
- Operating temperature range: 0~100°C
- Food Sanitation Law elution test passed
- JIS K 6353 Water Rubber Leaching Test Passed
- For Full Face Seating
- JIS10K Specification
- Maximum Allowable Pressure: 1.0 MPa (20°C)
- Maximum permissible temperature: 100°C
- Material/Finish: Ethylene Propylene Rubber (EPDM)
- Country of origin: Japan
- Securities Code: 494-9366
