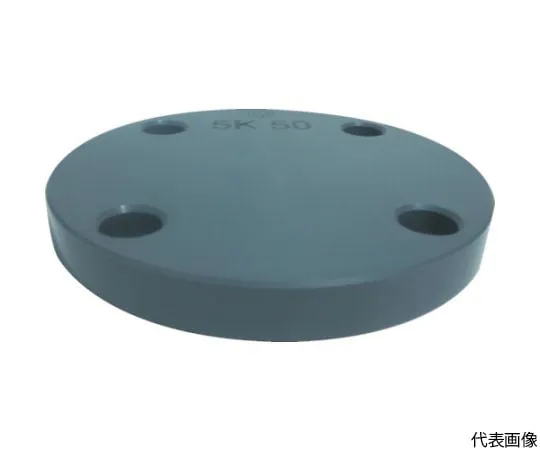

62-3391-95 Plate Flange SB Type 40 JIS5K PVC FSB405
Product Description
Product Model: 62-3391-95Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3391-95
Product Brand: SEKISUI
Features
- PVC SB flange with excellent corrosion resistance. Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- For a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, wastewater treatment lines in food factories, etc.
Spec
- Nominal Diameter A: 40
- Nominal Diameter B: 1 1/2
- Inner diameter (mm): 95
- Outer Diameter (mm): 120
- Thickness (mm): 12
- Number of Bolt Holes (pcs): 4
- Bolt Hole Diameter (mm): 15
- Working pressure (K): 5
- Type: Blind
- Bolt Hole Center Diameter (mm): 95
- Applicable bolt nominal (mm): M12
- Applicable Bolt M12: Under Neck 50
- Maximum Operating Temperature: 60°C
- Maximum Allowable Pressure: 0.5 MPa (20°C)
- Working pressure: 5 K
- Conform to JIS B2220
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful when using the adhesive.
- Note:Please *** standard construction method.
- Note:Please refer to the cautions for construction, performance and safety in the reference materials of the catalog.
- Country of Origin: Taiwan
- Securities Code: 494-9170
