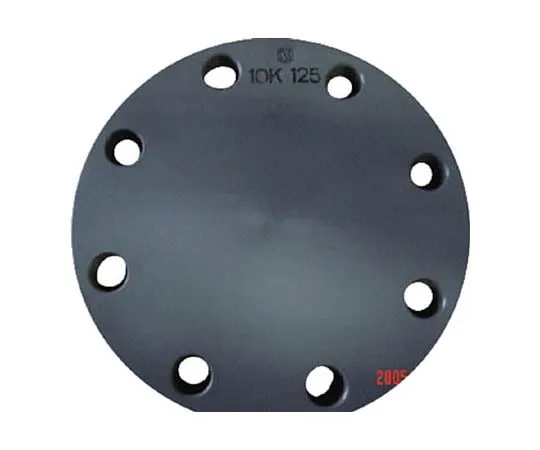

62-3391-91 Plate Flange SB Type 125 JIS10K PVC FSB1Q
Product Description
Product Model: 62-3391-91Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 62-3391-91
Product Brand: SEKISUI
Features
- PVC SB flange with excellent corrosion resistance. Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
- *Please be careful when using the adhesive.
- *Please *** standard construction method.
- *Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
Spec
- Nominal Diameter A: 125
- Working pressure (K): 10
- Type: Blind
- Nominal Diameter 5B Size: 125 A
- D:250mm
- T:20mm
- Input: 1
- Applicable Bolt M20: Under Neck 80
- Maximum Operating Temperature: 50°C
- 10k Spec
- Number of Bolt Holes 8
- Material: Body Rigid Polyvinyl Chloride Tube (PVC)
- Maximum Allowable Pressure: 1.0 MPa (at20°C)
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful when using the adhesive.
- Note:Please *** standard construction method.
- Note:Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Country of Origin: Taiwan
- Securities Code: 494-9404
