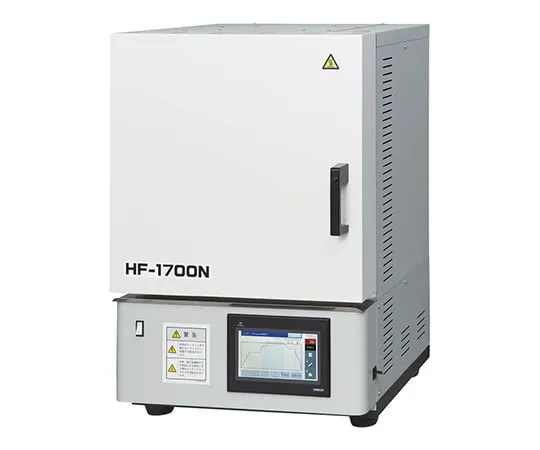

3-5152-11 High Temperature Precision Electric Furnace HF-1700N
laboratoryinstruments

3-5152-11 High Temperature Precision Electric Furnace HF-1700N

model: 3-5152-11

Product Description

Product Model: 3-5152-11 Features High heat resistant a […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-5152-11

Features

  • High heat resistant alumina fiber and molybdenum disilicide heater provide a maximum operating temperature of 1700°C.
  • With a 7-inch color touch panel, easy to understand operation and progress can be checked by graph display.
  • You can save programs to a USB thumb drive and log furnace temperature.
  • Inert gas can be introduced into the furnace by using a simple gas introduction function flowmeter kit (Since the inside of the furnace is not sealed, it is not possible to completely replace the gas.).

Spec

  • Outer dimensions (mm): 500 x 460 x 770
  • Inner dimensions (mm): 150 x 150 x 150
  • Maximum operating temperature: 1700 °C (Usual 1600 °C)
  • Temperature increase rate: 60 minutes to 1700 °C (unloaded)
  • Program function: 20 steps x 180 programs
  • Power supply: AC 200V ±10% 50/60Hz single phase 25 A or more
  • Power Consumption : 4.5 kVA
  • Main Weight: 100kg
