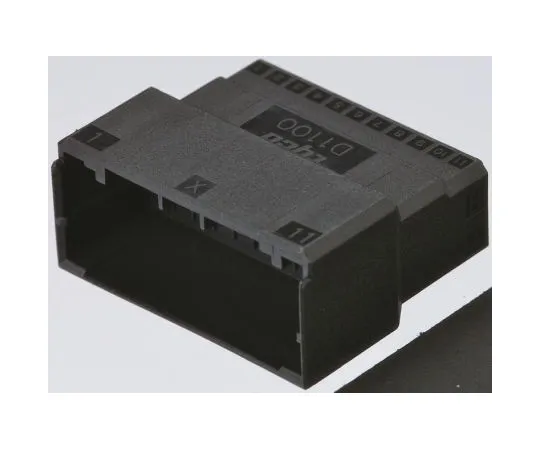

63-4611-65 Board Connector Housing Male 22 Pole 2 Row 2 mm Dynamic D -1000 1-1903127-1
model:
63-4611-65
brand:
TE Connectivity
Product Description
Product Model: 63-4611-65Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4611-65
Product Brand: TE Connectivity
Features
- Only wire range M erase contacts can be ***d for the D-1100D erase housing.
- Resecontact tab contact is common to D-1100 & D-1200.
- The D-1200 is keyed to prevent misinsertion. Our company handles X type.
- Wire to board connector D-1000 series
- The smallest multi-pole signal connector in the familiar dynamic connector series
- About 40% smaller than the conventional product (D-2000 series) (D-1100D) Has many results with SW power supply, stepping motor and encoder (D-1200D) Contact is gold-plated
Spec
- Number of pieces: 1
- Number of contacts: 22
- Number of lines: 2
- Pitch: 2 mm
- G***er: Male
- Series: D -1000
- Compatible products: Wire-to-board connectors, wire-to-panel connectors, wire-to-wire connectors
- Body orientation: straight
- Length: 24.6 mm
- Width: 11.3 mm
- Depth: 21 mm
- Housing Material: PBT
- RoHS compliance status: Compliance
- Securities Code: 397 -739
