63-4610-69 Cable Marker White TRSA-1019G13
Electronic/Electrical Parts and Controll Equipments

63-4610-69 Cable Marker White TRSA-1019G13

model: 63-4610-69
brand: TE Connectivity

Product Description

Product Model: 63-4610-69Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4610-69
Product Brand: TE Connectivity

Features

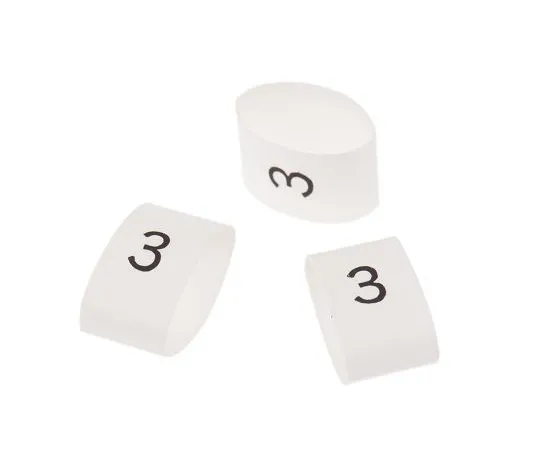

  • Heatshrink Pre-Printed Cable Marker
  • An irradiated polyolefin heat-shrink cable marker that shrinks to 33% of its original diameter when heated above 120°C.
  • The leg*** is printed in black on a white background so it can be clearly identified in low light.
  • This cable marker is highly flame retardant (> 5 seconds burn time), compatible with ASTM B876.
  • Features and Benefits:; Available in 3 sizes: - Size 3// 1: Nominal inside diameter 3 mm - Size 6// 2: Nominal inside diameter 6 mm - Size 12// 4: Nominal inside diameter 12 mm; Continuous temperature range: -55 to +135°C (maximum +300°C for short periods); Shrinkage ratio: 3:1; Easy and safe installation; Resistance suitable for common fluids

Spec

  • Quantity: 1 bag (100 pieces)
  • Fixing method: Heat shrink tube
  • Leg***: 3
  • Minimum cable diameter: 4 mm
  • Maximum cable diameter: 12 mm
  • Color: White
  • Amount: 100
  • Material: Polyolefin
  • Minimum operating temperature: -55 degrees C
  • Operating temperature mAx: + 135 C
  • Durable: Flames, fluids
  • Cable diameter range: 4 to 12 mm
  • RoHS compliance status: Compliance
  • Securities Code: 393 -188
