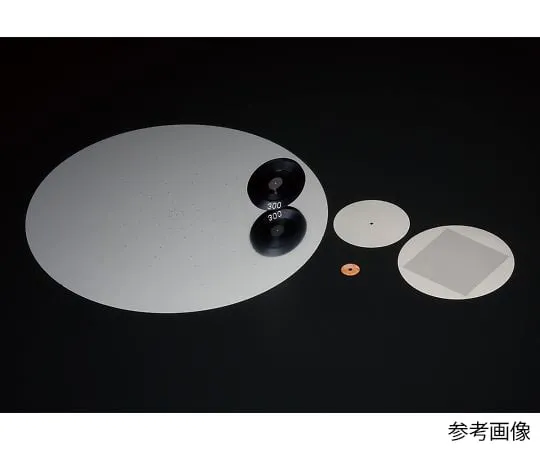

4-1777-01 Copper Sheet with Precision pin hole 1.0-0/+0.5um
Analyzer, Testing Equipment

4-1777-01 Copper Sheet with Precision pin hole 1.0-0/+0.5um

model: 4-1777-01
brand: REX

Product Description

Product Model: 4-1777-01Product Brand: REX Features Thi […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 4-1777-01
Product Brand: REX

Features

  • Thin nickel plates are perforated in microns by electrocasting.
  • Unlike conventional laser drilling, pinhole roundness is high and the edge of the hole is very smooth.

Spec

  • Hole Diameter W (μm): 1.0
  • Hole Diameter Tolerance (μm): 0.5/-0.3
  • material: 99.9% pure nickel
  • Diameter of substrate: Φ 9.5 + 0.0/-0.1 mm
  • Substrate thickness (t): 20 ± 5 μm
  • Position Tolerance for pin hole: ± 0.1 mm
  • Edge Depth (a): 3 μm
  • *Also available with mount (aluminum frame). Please contact us.
