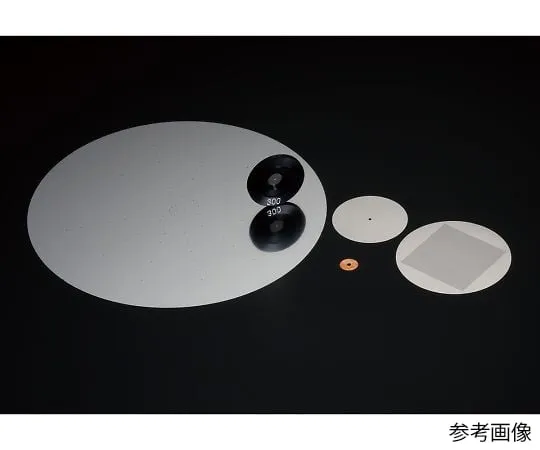

4-1776-01 Thin copper plate (With High Energy pin hole)
Analyzer, Testing Equipment

4-1776-01 Thin copper plate (With High Energy pin hole)

model: 4-1776-01
brand: REX

Product Description

Product Model: 4-1776-01Product Brand: REX Features Thi […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 4-1776-01
Product Brand: REX

Features

  • Thin copper plates are perforated in microns by electrocasting.
  • Unlike conventional laser drilling, pinhole roundness is high and the edge of the hole is very smooth.
  • A thin copper substrate with high thermal conductivity is coated with gold, which is highly reflective to infrared radiation (IR), and the damage threshold is approximately 50 MW/cm 2 (@ 700 nm).

Spec

  • Hole Diameter W (μm): 2.0
  • Hole Diameter Tolerance (μm): ± 0.5
  • material: Copper plated with gold on both sides
  • Diameter of substrate: Φ 9.5 + 0.0/-0.1 mm
  • Edge Depth (a): 3 μm
  • Position Tolerance for pin hole: ± 0.1 mm
  • Substrate thickness (t): 20 ± 5 μm
  • *Also available with mount (aluminum frame). Please contact us.
