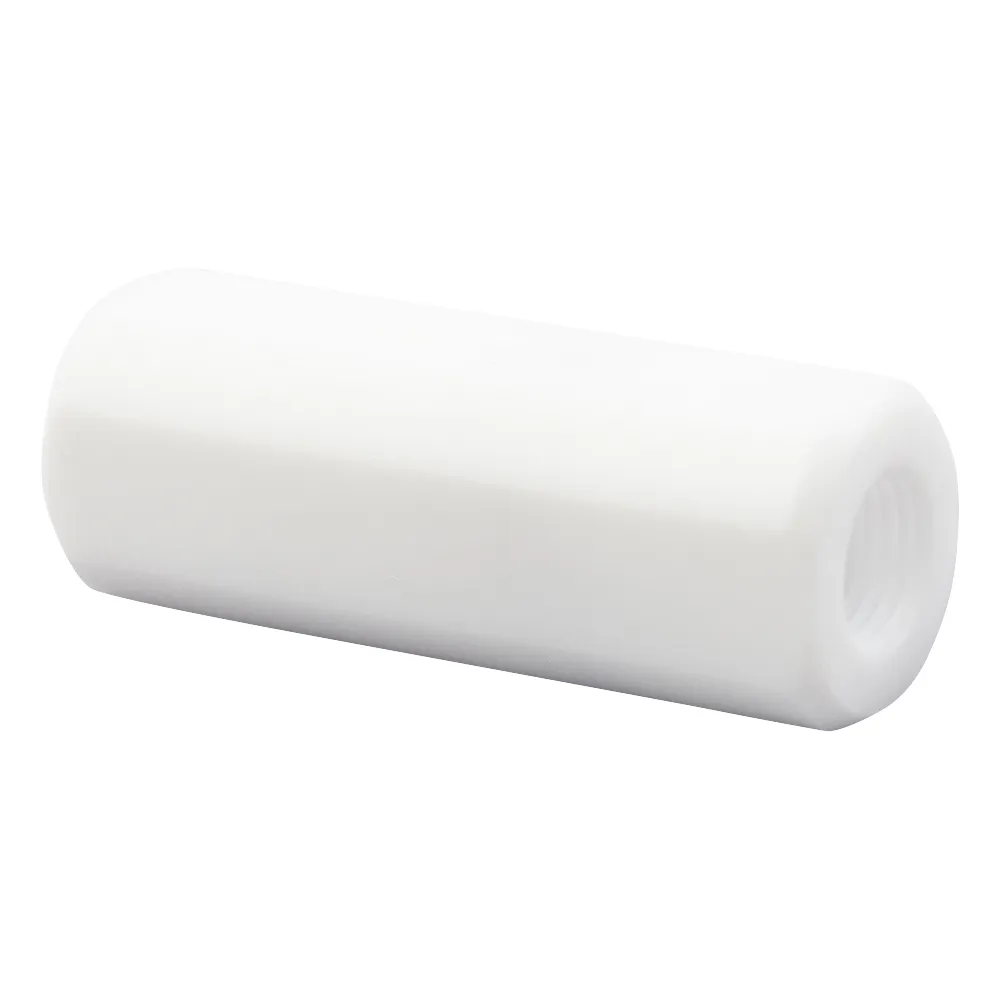

7-639-01 PTFE Check Valve 6mm -
model:
7-639-01
category:
automaticdiluter
Product Description
Product Model: 7-639-01 Features The main body is made […]
Contact Us
Product Details
Product Model: 7-639-01
Features
- The main body is made of Teflon (R), the spring is made of PCTFE, and the seal part is made of Viton (R) O-ring with excellent chemical resistance.
Spec
- Pressure resistance: 0.4MPa (room temperature)
- Maximum operating temperature: 80℃ (MAX)
- Operating Pressure: 0.002 - 0.005MPa
- Orifice diameter: φ6mm
- Connection part: Rp1/4 parallel female screw
- RoHS3 (EU)2015/863 Certificates can be issued
