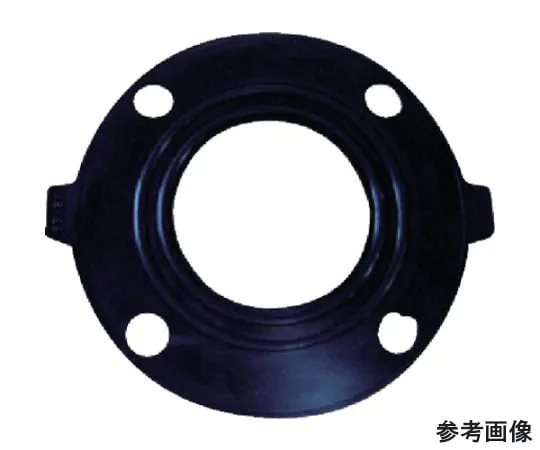

68-5018-50 Packing EPDM JIS5K 125 A PE1Q5C
Product Description
Product Model: 68-5018-50Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 68-5018-50
Product Brand: SEKISUI
Features
- A rubber (EPDM) packing with excellent corrosion resistance.
- Double round protruding rib provides reliable water stopping performance.
- Has excellent chlorine water resistance and chemical resistance.
- It is not affected by residual chlorine contained in tap water.
- Demonstrates high sealing performance with low tightening torque.
- The maximum allowable temperature is 100°C.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
- Other materials: PTFE, IIR-X, PTFE (Tri-Guard) are available.
Spec
- Nominal Diameter A: 125
- Nominal Diameter B: 5
- Inner diameter (mm): 131
- Outer Diameter (mm): 233
- Thickness (mm): 3
- Working pressure (K): 5
- Number of Bolt Holes (pcs): 8
- Bolt Hole Diameter (mm): 19
- Thickness: 3 t
- Maximum Operating Temperature: 100°C
- Center Circle Diameter (C) 200 mm
- Recomm***ed Tightening Torque 55 N/m
- Nominal Diameter: 5B
- Number of holes (pcs): 8
- Material: EPDM
- Size: 125 A
- JIS5K Specification
- Maximum Allowable Pressure: 1.0 MPa (at20°C)
- Thickness 3mm
- 100°C or Less
- For Full Face Seating
- Material/Finish: Ethylene Propylene Rubber (EPDM)
- Country of origin: Japan
- Securities Code: 850-5698
*This product might require extra fees.
