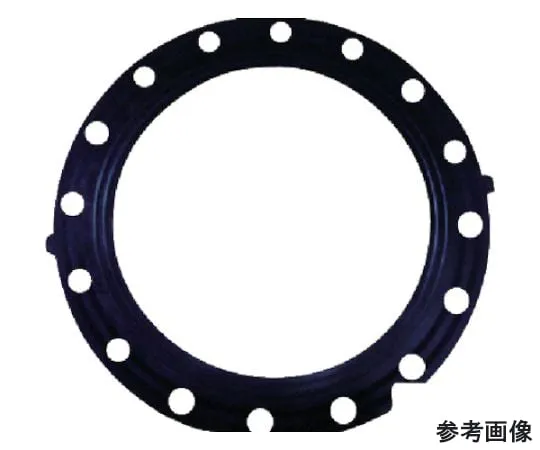

68-5018-29 Packing EPDM JIS10K 300 A PE3HC
Product Description
Product Model: 68-5018-29Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 68-5018-29
Product Brand: SEKISUI
Features
- A rubber (EPDM) packing with excellent corrosion resistance.
- Double round protruding rib provides reliable water stopping performance.
- Has excellent chlorine water resistance and chemical resistance.
- It is not affected by residual chlorine contained in tap water.
- Demonstrates high sealing performance with low tightening torque.
- The maximum allowable temperature is 100°C.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
- Other materials: PTFE, IIR-X, PTFE (Tri-Guard) are available.
Spec
- Nominal Diameter A: 300
- Nominal Diameter B: 12
- Inner diameter (mm): 304
- Outer Diameter (mm): 443
- Thickness (mm): 3
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 400
- Number of Bolt Holes (pcs): 16
- Bolt Hole Diameter (mm): 25
- Thickness: 3 t
- Maximum Operating Temperature: 100°C
- Center Circle Diameter (C) 400 mm
- JIS10K Specification
- Recomm***ed Tightening Torque 65 N/m
- Number of Holes (pcs): 16
- Size: 300 A
- Material: EPDM
- Nominal Diameter: 12B
- JIS10K Specification
- Maximum Allowable Pressure: 1.0 MPa (at20°C)
- Thickness 3mm
- 100°C or Less
- For Full Face Seating
- Material/Finish: Ethylene Propylene Rubber (EPDM)
- Country of origin: Japan
- Securities Code: 850-5700
*This product might require extra fees.
