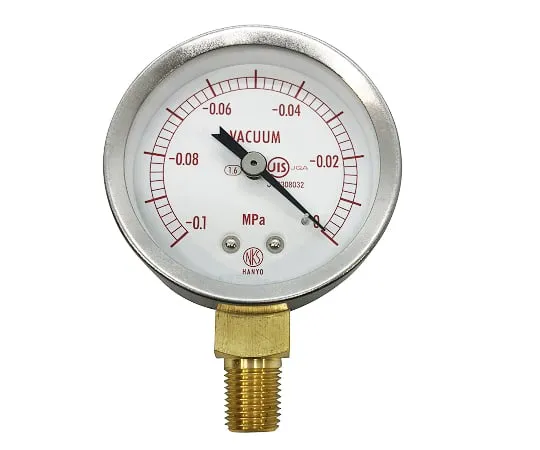

62-2986-21-57 Vacuum Meter for Vacuum Desiccator with Chinese Calibration Certificate 1086*0
model:
62-2986-21-57
category:
gasmonitors
Product Description
Product Model: 62-2986-21-57 Features A pressure gauge […]
Contact Us
Product Details
Product Model: 62-2986-21-57
Features
- A pressure gauge with a structure that conveys the elastic deformation (movement) of a Bourdon tube to a guide. Easy to handle due to its simple structure.
- JIS B 7505-1 standard product.
Spec
- Pressure range (MPa): - 0.1 ~ 0.00 (vacuum gauge)
- Minimum scale (MPa): 0.002
- Accuracy: plus or minus 1.6% FS
- Case Shape: A
- Connection size: R 1/4
- Size (mm): 60
- Size: 60 mm
- JIS standard products: ATR 1/4
- Material/Finish: Bourdon Tube: Brass, Stainless steel (SUS 316) over pressure range of 4 MPa
