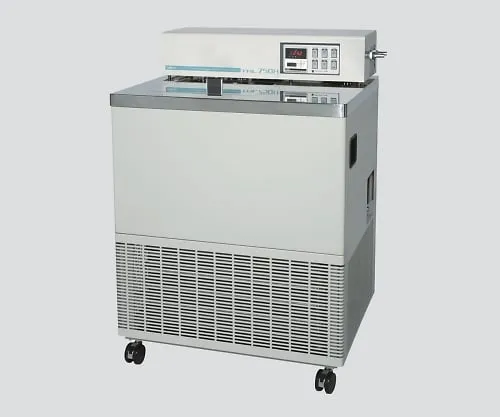

3-3477-01 Constant-Low-Temperature Water Bath TRL-750EX
Product Description
Product Model: 3-3477-01Product Brand: THOMAS KAGAKU Co […]
Contact Us
Product Details
Product Model: 3-3477-01
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- The refrigerator can be operated at all temperatures from -5 °C to +80°C, and is especially effective for cooling heat loads at high temperatures.
- With the external circulation function (chiller), the wide tank can be ***d as a low temperature constant temperature water bath.
- A large water bath with a capacity of 34 L can mitigate sudden temperature changes from the outside.
Spec
- Model number: TRL-750EX
- Temperature settings range (℃): -5 to +80
- Cooling capacity: 2300W
- Temperature stability: +/- 1.5℃
- Temperature control system: ON/OFF control method (digital temperature indication controller)
- Heater capacity: 2kW (sheath wire type)
- Refrigerating machine: Air-cooled 750W (HFC-407C)
- Using medium: Water, Ethylene glycol system (brine)
- Agitator: Vertical propeller stirring method (25W motor)
- Circulation pump: 65W magnet pump (maximum head/3m, Maximum flow rate/30L/minutes, Maximum discharge pressure/0.03MPa)
- Connection port size: Outer diameter φ16 hose port (Rp1/2)
- Safety device: Electrical leakage breaker, Chamber temperature excessive rise prevention device, Water level decreased alarm
- Power supply: 200VAC 3 phase 11A 50/60Hz
- Power cord length: 3m
- Material: Inner tank/stainless steel (SUS304), Exterior/steel plate baking coating finish
- External dimensions: 700 x 600 x (water tank 830, switchboard 150) mm
- Water tank internal dimension: 300 x 400 x 300mm
- Effective internal dimensions: 250 x 220 x 300mm
- Weight: Approx 120kg
- Accessories: Stainless steel shelf board, cover 1 pair each
- *Power plug is not included.
