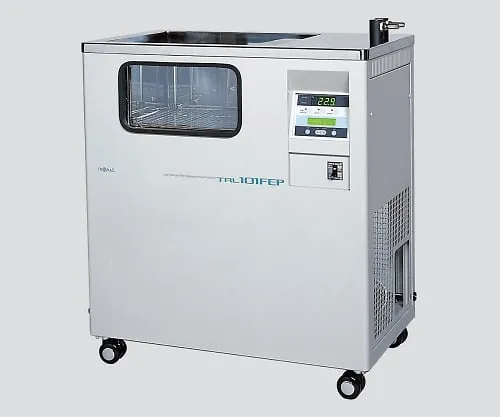

3-3476-02 Constant-Low-Temperature Water Bath TRL-101FEP
Product Description
Product Model: 3-3476-02Product Brand: THOMAS KAGAKU Co […]
Contact Us
Product Details
Product Model: 3-3476-02
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- The opening of the water tank is wide and many samples can be processed at once.
- The height can be adjusted with the attached shelf board, and the height of the container can be adjusted.
- Equipped with a circulation pump, it can cool, heat, and maintain constant temperature not only inside the tank but also outside containers.
- It is suitable for *** in density, dynamic viscosity measurement, observation of changes in the physical properties of metallic resins, confirmation of solubility, observation of precipitation, pre-cooling, and thermostatic holding.
Spec
- Model number: TRL-101FEP
- Temperature adjustment range (℃): -10 to +60
- Cooling capacity: 500W
- External dimensions: 650 x 380 x 755mm
- Chamber dimensions: 400 x 300 x 300mm
- Window dimensions: 262 x 130mm
- Capacity: 32L
- Temperature stability: Within ±0.05℃
- Temperature adjustment: Digital temperature indication controller, PID control system
- Timer: Operation by auto start or auto stop timer (MAX 99 hours 59 minutes)
- Heater: Cartridge heater 1kW
- Refrigerating machine: Air-cooled type 250W HFC-134a
- Cooling capacity: About 500W (430kcal/h water temperature +20℃ 50Hz)*
- Using medium solution: Water, Ethylene glycol system (brine)
- Agitator: Jet stirring method magnet pump
- Circulation pump: 20W magnet drive type pump maximum head 2m, maximum flow rate 10L/minutes, maximum discharge pressure 0.02MPa
- Circulation IN-OUT: Outer diameter φ12 hose port (Rp3/8)
- Safety device: Electrical leakage breaker, Self-diagnosis function (HC: Excessive rise prevention, LC: Low temperature prevention, Water level decreased, Frozen machine protection circuit, Temperature sensor abnormal, Frozen machine pressure abnormal, Incorrect setting prevention)
- Material: Inner tank/stainless steel (SUS304), Exterior/steel plate baking coating finish
- Power: 100VAC 15A 50/60Hz power cord length 2m
- Weight: Approx 58kg
- Accessories: Up or down mobile stainless steel shelf board x 1 pair
- *It is a number when not using circular pump.
