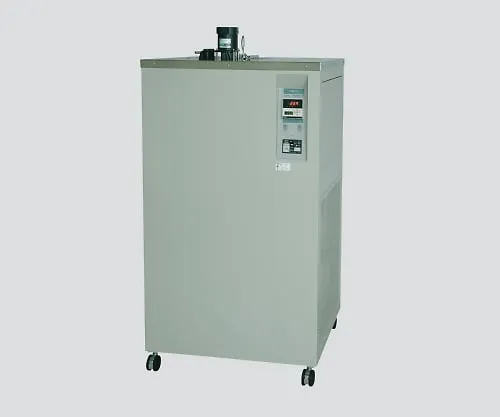

3-3436-02 Constant And Ultracold Water Tank TRL-70SLP
Product Description
Product Model: 3-3436-02Product Brand: THOMAS KAGAKU Co […]
Contact Us
Product Details
Product Model: 3-3436-02
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- A dual refrigeration system is ***d to circulate ultra-low temperature liquid to the outside.
- Since it is a 60 W motor/sealless circulation pump for both stirring and operation, it can be operated for a long time.
Spec
- Model number: TRL-70SLP
- Operating temperature range (℃): -70 to -20
- Cooling capacity *1: About 350W (liquid temperature -50℃) about 250W (liquid temperature -70℃)
- *1 It is a number when not using circular pump.
- *For more information, please contact with us.
- External dimensions: 650 x 600 x 1350mm (including height of motor)
- Chamber dimensions: 280 x 320 x 200mm
- Chamber usable dimensions: 250 x 195 x 200mm
- Capacity: 15L
- Temperature stability: +/- 1.5℃
- Temperature adjustment: Digital temperature indication controller ON/OFF control system
- Refrigerating machine: Air-cooled type 1100W, 750W x 2 dual freezing method HFC-404A, HFC-23
- Using medium solution: Ethylene glycol system (brine), methanol, ethanol
- Circulation pump (stir double *** type): 60W condenser motor maximum head 3m maximum flow rate 15L/minutes maximum discharge pressure 0.03MPa
- Circulating nozzle connection port: Outer diameter φ12mm hose port (Rp3/8)
- Safety device: Electrical leakage breaker
- Material: Inner tank/stainless steel (SUS304), Exterior/steel plate baking coating finish
- Power supply: 200VAC 9A 50/60Hz power cord length 3m *2
- Weight: Approx 160kg
- *2 Power plug is not included.
