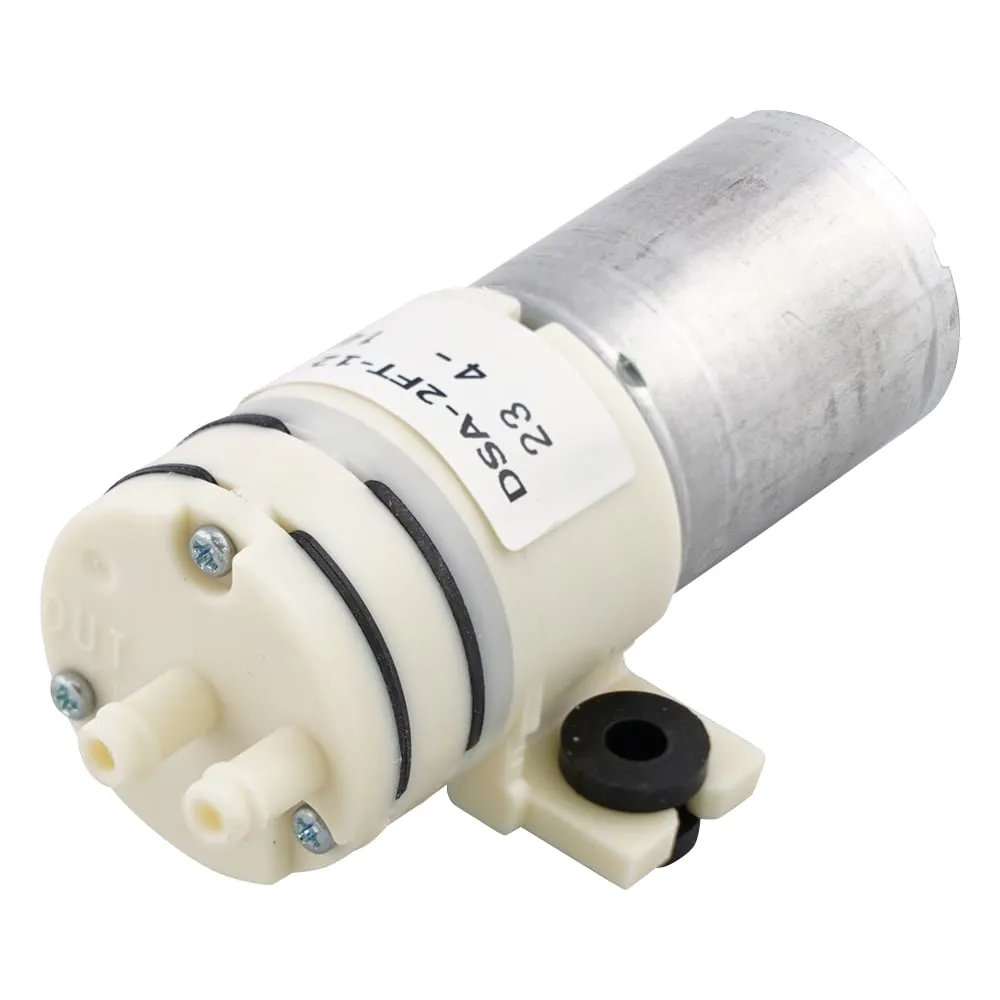

2-9573-11 Compact DC Diaphragm Pump for Air 12 V DSA-2FT-12
Product Description
Product Model: 2-9573-11Product Brand: Denso Sangyo Fea […]
Contact Us
Product Details
Product Model: 2-9573-11
Product Brand: Denso Sangyo
Features
- High speed sampling (2000 Hz) and following sudden load changes provide high reproducibility for both peak values and continuous data.
- It has an OLED display, and you can display your favorite measurement parameters on the screen divided into three sections.
- A variety of data outputs, including USB and wireless and serial communications, are available, making it ***ful in a wide range of situations, from managing data on a personal computer to controlling external devices, such as stopping a machine at a specified load value.
- The included USB cable and software can be ***d to read internal memory data and obtain continuous data, and optional software sold separately can be ***d to draw load-time graphs in real time.
Spec
- Applied Fluid: Air
- Size: phi 27 x 62.3 mm (excluding protrusions)
- Connection port: phi5 (outermost diameter of nozzle) x 8 mm
- Wetted/Gas Materials: Rubber (EPDM), Resin (SPS)
- Endurance time * 1: 200 hours or more
- Weight: 60 g
- *1 Endurance test: Rated voltage applied, ambient temperature 20 degrees, absolute pressure 101.3 KPa, relative humidity 65%, load 20 KPa (-20 KPa), 10 seconds ON - 5 seconds OFF Total energization time.
- Rated voltage (V): 12
- Flow rate: Air/1.3 L/min or more
- Vacuum Reach (kPa or higher): -40
- Maximum pressure (kPa or higher): 90
- Operating sound (db or less): 50
- Food hygiene response: Not supported
