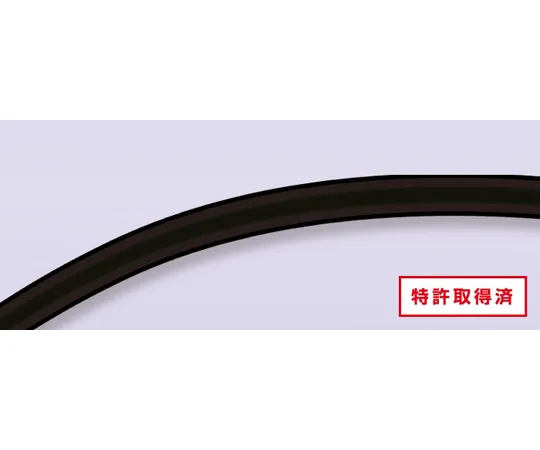

68-1079-93 Fluorine Barrier Tube (Black) 2 x 4 100M E-BTF-2x4-BK
Product Description
Product Model: 68-1079-93Product Brand: HAKKO Features […]
Contact Us
Product Details
Product Model: 68-1079-93
Product Brand: HAKKO
Features
- Oxygen Barrier: Has about twice the barrier performance of commercially available fluorine tubes, and suppresses the introduction of oxygen into the tubes and the generation of bubbles in the tubes.
- Solvent Barrier: Suppresses volatilization and transmission of solvents to the outside of the tube during solvent transport.
- Plasticizer Free: Uses oil-free material that does not contain plasticizer, which is the ca*** of eluted substances.
- Low elution: Compared to PVC, there is less eluted material, so it is a clean tube.
- Chemical resistance: The inner layer is made of special fluororesin and is resistant to most chemicals such as organic solvents.
- Green procurement: does not contain or is below the threshold for the 10 substance groups of the RoHS Directive (RoHS2.0), as am***ed on July 22, 2019.
- UV protection: Protects from ultraviolet rays and is suitable for transporting UV ink.
Spec
- Model number: E-BTF-2 x 4-BK
- Inner Diameter x Outer Diameter (mm): 2 x 4
- Working pressure (MPa): 0~1.2 (at 20°C)/0~0.5 (at 60°C)
- Allowable b*** radius (mm): 25 (at 20°C)
- Operating temperature range (°C): -20~60
- Tone: Black
- Constant length (m): 100
- Weight (kg/roll): 0.90
