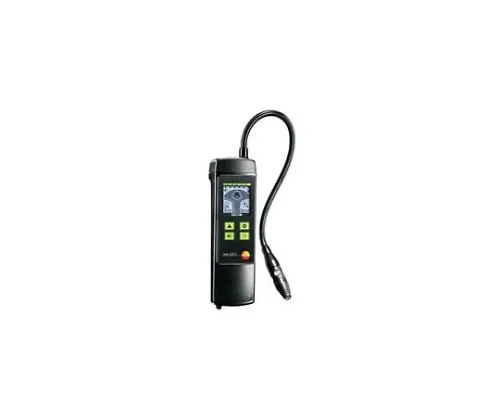

61-0105-51 testo316-4 Ammonia Refrigerant Detector Set 2 5633165
Product Description
Product Model: 61-0105-51Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0105-51
Product Brand: Testo K. K.
Features
- With a sensitivity of <3 g/year (compatible with EN 14624), even the slightest leak can be detected -- when detected, a display color and an alarm sound will indicate.
- Compatible with ammonia-compatible refrigerants
- Easily clean sensor dirt. Easy to clean.
- Comfortable *** in noisy environments with attached earphones
- Easy leak checking with bent sensor tube -- Can be checked even in bent areas such as pipes by approaching the sensor
Spec
- Item to be measured: g/year
- Measurable substance: R134a, R22, R404a, H2, CFC, HCFC, HFC, ＋NH3 (only set 2)
- Minimum sensing capabilities: 3g/year
- Resolution: 0.1
- Measurement response speed: 1 second or less
- Startup time: 50 seconds or less (0 to +50℃), 80 seconds or less (-20 - 0℃)
- Operation temperature: -20 to +50℃
- Operating humidity range: 20 - 80%rh
- Storage temperature: -25 to +70℃
- Battery: 1 block battery (duration of life is approx. 6 hours)
- Outer dimensions: 190x57x42mm
- Length of sensor tube: 370mm
- Mass: 348g
