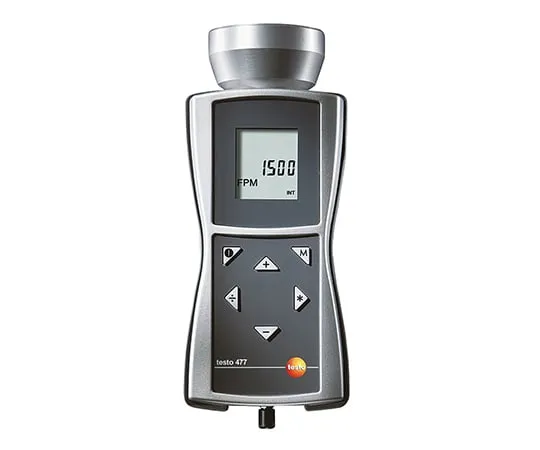

61-0105-38 testo477 LED Stroboscope 5634770
Product Description
Product Model: 61-0105-38Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0105-38
Product Brand: Testo K. K.
Features
- A stroboscope is a continuous beam of light that flashes at regular intervals of several to thousands of times per second, and is ***d to observe the movement and state of objects in rotational or repetitive motion using the afterimage effect.
- The maximum emission frequency is 300,000FPM (FlashesPerMinute). Supports high-speed rotating bodies.
- High brightness white LED ensures brightness of about 1,500Lux even at a distance of 20 cm.
- Energy saving design with low power consumption and long life white LED.
- Light emission time adjustment function.
- A phase adjustment function that shifts only the timing of light emission while maintaining the emission frequency.
- Equipped with connectors for external signals.
Spec
- Light emitting frequency: 30 - 300,000FPM (0.5 - 5,000Hz)
- Accuracy ±1 digit: 0.02% of settings (display value) (±1 digit)
- Resolution: 0.1 (at 30 - 999FPM), 1 (at 1,000 - 300,000FPM)
- Display: LCD, 6 digits number display
- Light emitting part: White color LED x 7 (color temperature approximately 6,500K)
- Illuminance: 1,500Lux (at 6,000FPM/20cm)
- Light emission time (variable): Available to set arbitrarily (1μs - 5% of light emitting period)
- Default: 1/180 of light emission period (approximately 0.56%)
- Phase adjustment function: Adjustment angle 0 - 359° (1° increments)
- External trigger input: Photo coupler input, Voltage/3 - 32V, Minimum pulse width/50μs
- External trigger output: Photo coupler (open collector) output, Maximum voltage 32V, maximum current 50mA
- Division function at the time of external trigger input: 1 - 255
- Operation temperature: 0 to +45℃
- Battery type: AA alkali dry cell x 3 or NiMH rechargeable battery x 3
- Battery life: AA alkali dry cell/approximately 5 hours (at 6,000FPM light emission), NiMH rechargeable battery: Approximately 11 hours (at 6,000FPM light emission)
- Protection grade: IP65
- Housing material: ABS, Aluminum
- External dimensions (L x W x H): 191 x 82 x 60mm
- Mass: Approx 400g (including battery)
