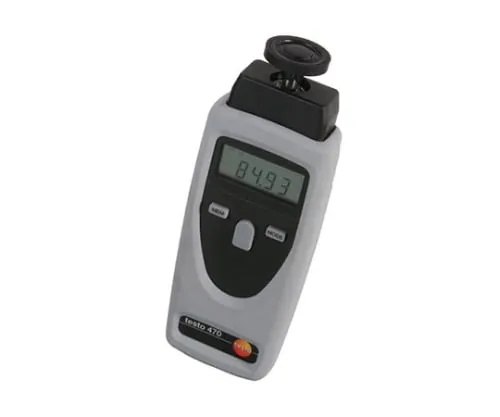

61-0105-36-20 testo 470 with Calibration Certificate 05630470
Product Description
Product Model: 61-0105-36-20Product Brand: Testo K. K. […]
Contact Us
Product Details
Product Model: 61-0105-36-20
Product Brand: Testo K. K.
Features
- You can measure the number of revolutions by both optical and contact methods.
- You can switch from optical to contact measurement simply by installing a probe tip or an adapter for a surface speed measurement disk.
- You can easily measure by attaching a reflector to the target and shining a visible red light on the reflector.
- Simple operation with one hand
- Easy measurement method changeover
- Speed, speed and length measurement
- With "dead battery" warning function.
Spec
- Measuring range: optical/+ 1 to + 99,999 rpm with modulated light, contact/+ 0.1 to + 19,999 rpm (dep***s on rotation axis diameter)
- Accuracy +/- 1 digit: +/- 0.02% of the measured value
- Resolution: 0.01 rpm (+ 1 to + 99.99 rpm), 0.1 rpm (+ 100 to + 999.9 rpm), 1 rpm (+ 1,000 to + 99,999 rpm)
- Speed: 0.10 ~ 1,999 m/min, 0.30 ~ 6,500 ft/min, 4.00 ~ 78,000 in/min
- Length: 0.02 ~ 99,000 m, 0.01 ~ 99,000 feet, 1.00 ~ 99,999 inches
- Accuracy +/- 1 digit (length): 0.02 m (dep***ing on resolution)
- Surface speed: Disc 0.1 m
- Operating temperature: 0 to + 50 degrees C
- Battery type: 2 AA batteries
- Battery life: 40 hours
- Dimensions: 175 x 60 x 28 mm
- Mass: 190 g
