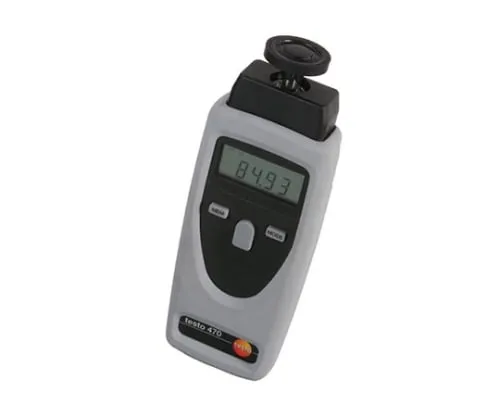

61-0105-36 testo470 5630470
Product Description
Product Model: 61-0105-36Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0105-36
Product Brand: Testo K. K.
Features
- You can measure the number of revolutions by both optical and contact methods.
- You can switch from optical to contact measurement simply by installing a probe tip or an adapter for a surface speed measurement disk.
- You can easily measure by attaching a reflector to the target and shining a visible red light on the reflector.
- Simple operation with one hand
- Easy measurement method changeover
- Speed, speed and length measurement
- With "dead battery" warning function.
Spec
- Measurement range: Optical system by modulated light beam/+1 to +99,999rpm, Contact system/+0.1 to +19,999rpm (differs according to the rotation axis diameter)
- Accuracy ±1 digit: ±0.02% of the measured value
- Resolution: 0.01rpm (+1 to +99.99rpm), 0.1rpm (+100 to +999.9rpm), 1rpm (+1,000 to +99,999rpm)
- Speed: 0.10 - 1,999m/minute, 0.30 - 6,500Ft/minute, 4.00 - 78,000 inches/minute
- Length: 0.02 - 99,000m, 0.01 - 99,000Ft, 1.00 - 99,999 inches
- Accuracy ±1 digit: 0.02m (by resolution)
- Surface speed: Disc 0.1m
- Operation temperature: 0 to +50℃
- Battery type: AA dry cell x 2
- Battery life: 40 hours
- Outer dimensions: 175 x 60 x 28mm
- Mass: 190g
