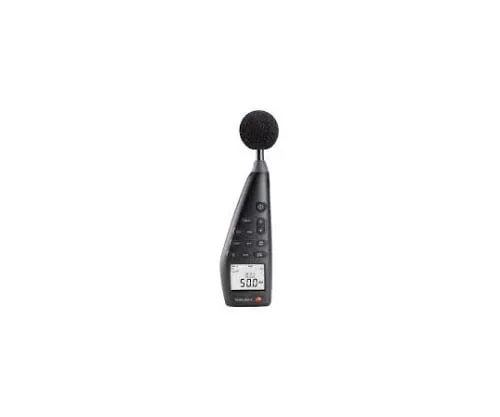

61-0105-34 testo816-1 5638170
Product Description
Product Model: 61-0105-34Product Brand: Testo K. K. Fea […]
Contact Us
Product Details
Product Model: 61-0105-34
Product Brand: Testo K. K.
Features
- Switching frequency characteristics (A and C characteristics).
- Change dynamic characteristics (Fast/Slow).
- Built-in memory that can store up to 31,000 data.
- Can measure for a long time using dedicated software.
- IEC61672-1 Class 2 (ANSI 1.4 Type 2) compliant (JIS compliant).
- AC/DC output function.
Spec
- Measurement range: 30 - 130dB
- Frequency range: 20Hz - 8KHz
- Accuracy ±1 digit: ±1.4dB (94dB, in 1kHz)
- Resolution: 0.1dB
- Frequency characteristics (switching type): A characteristics, C characteristics
- Dynamic characteristics (switching type): Fast - 0.125Mm. seconds, Slow - 1 second
- Measurement interval: 2 times/seconds
- Output: AC/DC
- Operation temperature: 0 to +40℃
- Storage temperature: -10 to +60℃
- Battery: AA dry cell x 4
- Outer dimensions: 272(H)x83(W)x42(D)mm
- Mass: 390g
- Conform: DIN EN 60672 Class2 (ANSIS1.4 type2)
