laboratoryinstruments

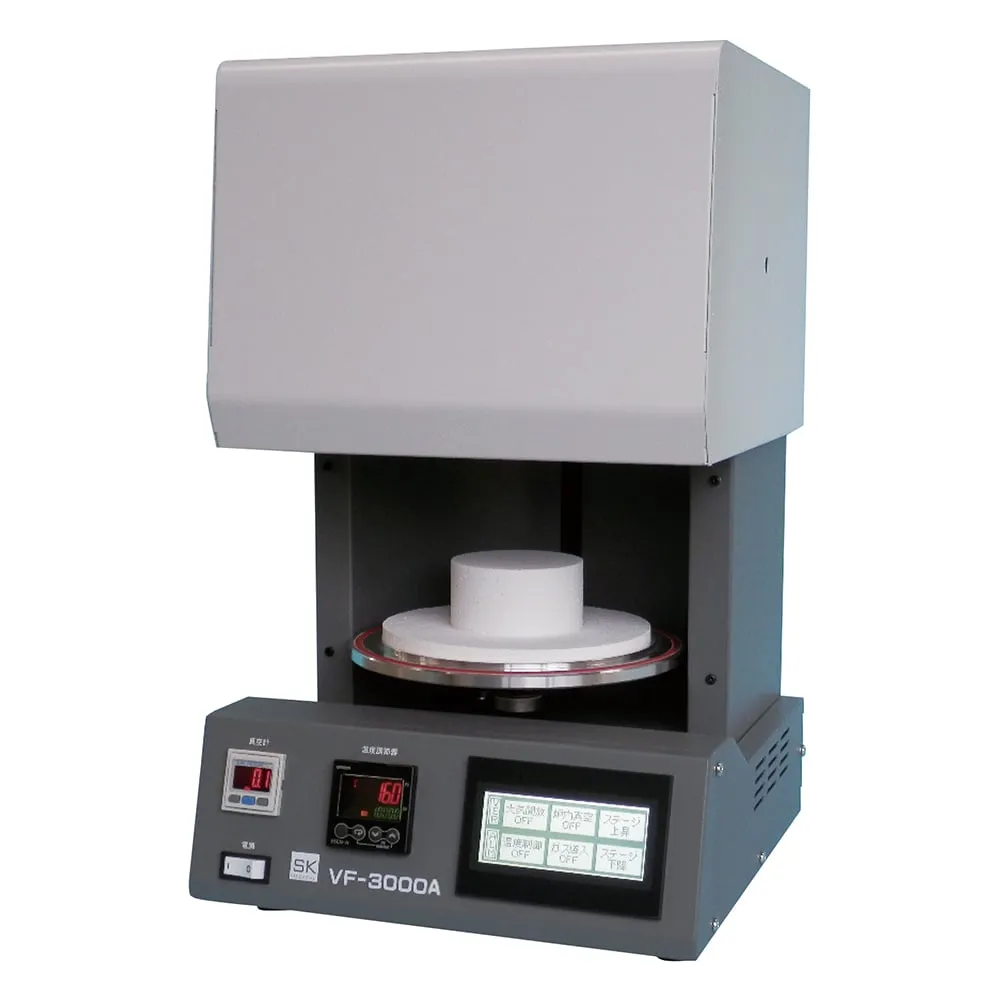

2-9406-11 Gas-replaced electric furnace VF-3000A
model:
2-9406-11
category:
laboratoryinstruments
Product Description
Product Model: 2-9406-11 Features This is an electric f […]
Contact Us
Product Details
Product Model: 2-9406-11
Features
- This is an electric furnace that has a raised and lowered stage, in which the object to be heated is placed on the ceramic fiber platform of the stage and stored in the furnace, and in which vacuum and gas can be replaced.
- Compact body for easy firing tests on a tabletop.
- Can heat up to 1100 degrees Celsius in air, vacuum and inert gas atmospheres (normal 1000 degrees Celsius).
Spec
- External dimensions (mm): 290 x 310 x 490
- Furnace internal dimensions (mm): phi 80 x 50
- Number of pieces: 1
- Maximum operating temperature: 1100 degrees Celsius (normal 1000 degrees Celsius)
- Heating time: 10 minutes from room temperature to 1000 degrees C (in an empty furnace)
- Number of programs (temperature control only): 8 programs, 32 segments
- Safety Circuit: Thermocouple Disconnection Detection, Heater Anomaly Detection, Temperature F***
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 2 m (3P plug)
- Power consumption: 1100 VA (not including vacuum pump)
- Body weight: 18 kg
- Accessories: 1 stage insulation, 3 hose nipples
- *Vacuum pumps and inert gas facilities are not included. If necessary, please contact us separately.
*This product might require extra fees.
