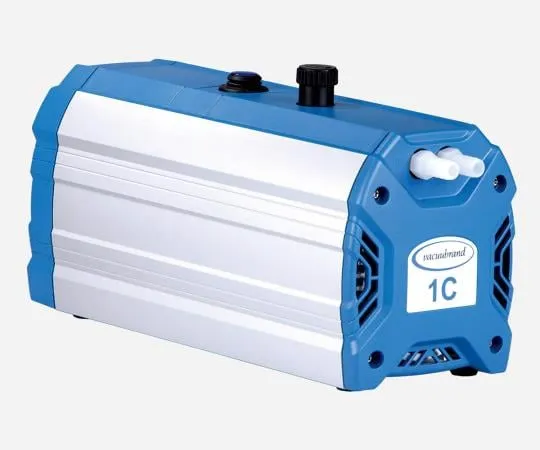

2-8656-11 Drug-Resistant Diaphragm Vacuum Pump MZ1C
model:
2-8656-11
category:
laboratoryinstruments
Product Description
Product Model: 2-8656-11 Features All gas contact parts […]
Contact Us
Product Details
Product Model: 2-8656-11
Features
- All gas contact parts are made of fluorine resin and have excellent durability and chemical resistance.
- Due to the special structure that prevents the cylinder head from contacting the cylinder, noise and vibration are reduced and mechanical strength is excellent.
- Diaphragms and valve seals, which are consumable parts, do not require special adjustment each time they are replaced.
Spec
- Exhaust speed (50/60Hz) L/min: 12/15
- Achieving vacuum degree: 12hPa (9Torr), 20hPa (15Torr) with gas ballast opened
- Inlet, exhaust port: Hose nozzle outer diameter φ 10mm (NPT1/8 female)
- Material: Diaphragm/fluorine rubber PTFE coating, Valve seal/FFKM (perfluoroelastomer rubber), PTFE (poly tetrafluoroethylene)
- Power supply: AC100 - 120V 50/60Hz
- Power consumption: 60W
- Size: 121 x 312 x 170mm
- Weight: 6.7kg
