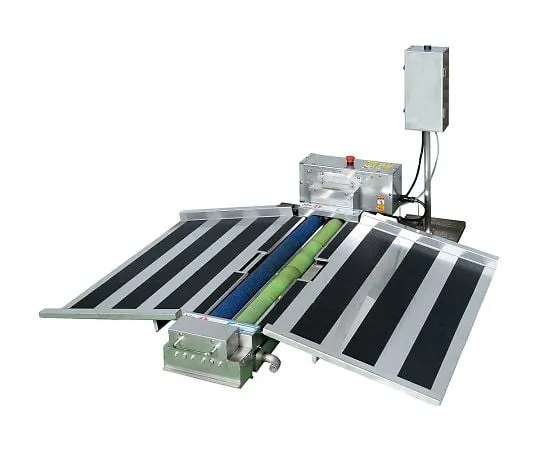

4-2335-01 Cart Caster Cleaning Device KCW-SC202
Product Description
Product Model: 4-2335-01Product Brand: Kotohira Industr […]
Contact Us
Product Details
Product Model: 4-2335-01
Product Brand: Kotohira Industry Co.,Ltd
Features
- Can handle a variety of trolleys (Width Between Casters: Left/Right/~ 800 mm/Front/~ 1200 mm, Caster Diameter: φ 75 ~ 150 mm).
- Washing water can be supplied and discharged, and it is washed while supplying and discharging water according to the operation (it is also possible to collect water for washing).
- It can be assembled without tools, and as it is a simple installation type, no pit work is required.
Spec
- main body
- Quantity: 1
- material: SUS304, Others
- Size: Main Unit: 1360 x 1340 x 280 mm (Include Slope), Control Box: 250 x 300 x 800 mm
- Weight: about 70 kg
- power supply: Single-Phase AC100V 50/60 Hz 78 W
- Load tolerance : 150 kg (non-operating)
- Water Supply Pipe: Applicable Hose inner diameter Φ 15 mm
- Drain Pipe: Applicable Hose inner diameter Φ 25 mm
- Safety Mechanism: Leakage Protection, Overload Protection
