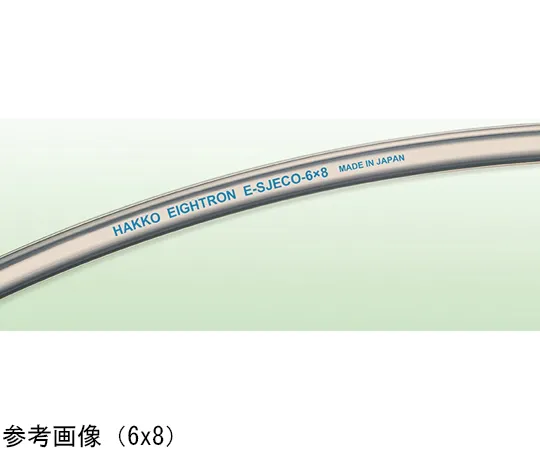

68-1079-78 Super Flexible Fluorine Tube (Eco-Fri***ly) 4 x 6 20M E-SJECO-4x6
automaticdiluter

68-1079-78 Super Flexible Fluorine Tube (Eco-Fri***ly) 4 x 6 20M E-SJECO-4x6

model: 68-1079-78
brand: HAKKO
category: automaticdiluter

Product Description

Product Model: 68-1079-78Product Brand: HAKKO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 68-1079-78
Product Brand: HAKKO

Features

  • Chemical resistance: The inner layer is made of tetrafluoroplastic (ETFE), so it is resistant to most chemicals.
  • Flexibility: The laminated structure provides superior flexibility and improved workability compared to commercially available fluorine single-walled tubes.
  • Difficulty in breaking: Difficult to break compared to commercially available fluorine single-walled tubes, and even if broken, can be restored to some extent.
  • Non-Adhesive: Fluoropolymer in the inner layer has excellent water repellency and non-adhesive properties, resulting in less liquid residue and excellent cleaning properties.
  • Plasticizer Free: Uses oil-free material that does not contain any plasticizer, which is a factor in leaching materials.
  • Low elution and odor: Very low resin odor and leaching materials make it suitable for food, beverage, and cosmetic applications.
  • High purity: Fluoropolymer in the inner layer does not contain additives such as plasticizers and is suitable for high-purity chemical piping.
  • Green Procurement: Does not contain or is below the threshold for 10 substances in the RoHS Directive (RoHS2.0), as am***ed on July 22, 2019.

Spec

  • Model number: E-SJECO-4 x 6
  • Inner Diameter x Outer Diameter (mm): 4 x 6
  • Working pressure (MPa): 0~0.6 (at 20°C)/0~0.2 (at 80°C)
  • Allowable b*** radius (mm): 25 (at 20°C)
  • Operating temperature range (°C): -20 - +80
  • Constant length (m): 20
  • colors: transparent
  • Weight (kg/roll): 0.40
