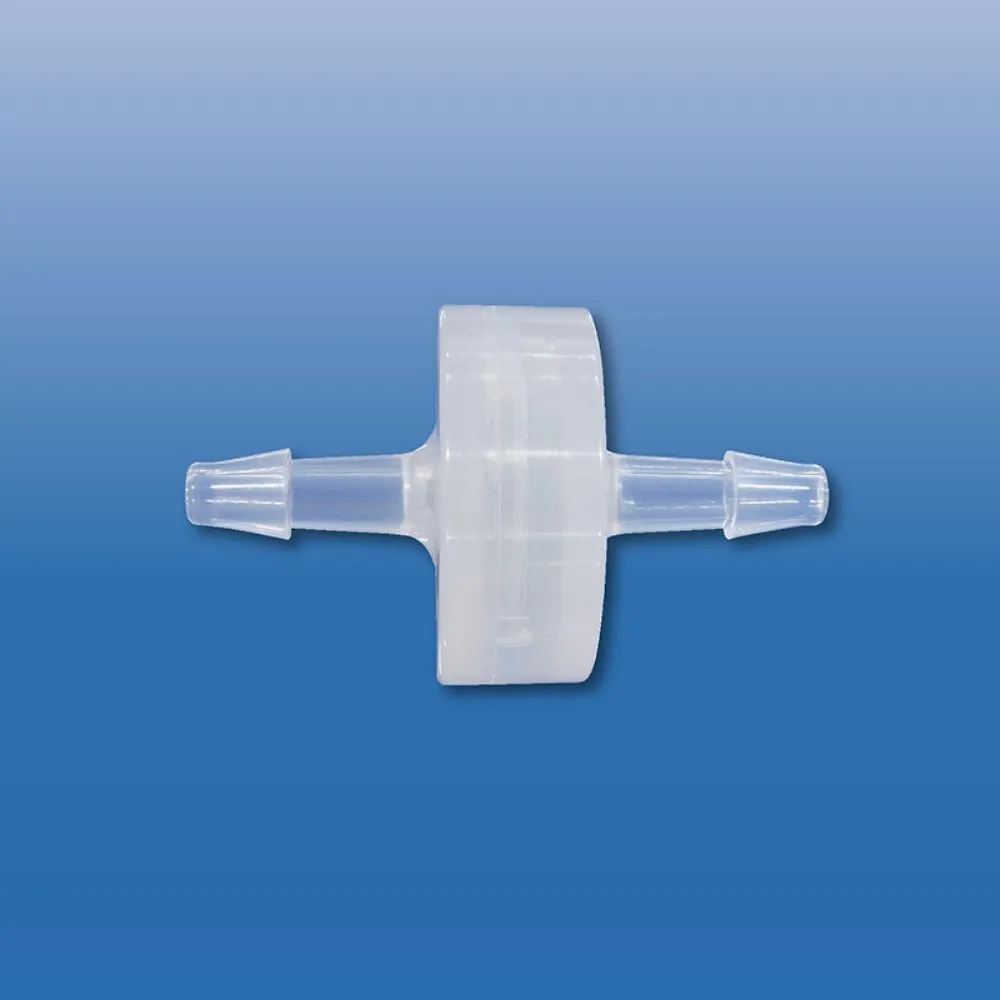

67-6873-19 ARAM Inline Filter N NIF32M100 32.5 mm 1 Bag (10 Pieces) 3802-01
Product Description
Product Model: 67-6873-19Product Brand: ARAM Corporatio […]
Contact Us
Product Details
Product Model: 67-6873-19
Product Brand: ARAM Corporation
Features
- Attached between tubes, it can easily stop solids in the fluid.
- The main body is compact with a width of approximately 8 mm and a diameter of approximately 20 mm.
- Improved pressure resistance compared to conventional Aram in-line filters.
- Complies with RoHS and REACH regulations. (As of August 2023)
- Do not continue using the product in a clogged state.
- Replace it according to the operating environment.
- Drop or impact may ca*** damage.
- Compared to the previous type, it has been redesigned to be compact in appearance dimensions.
- Improved liquid flow rate and pressure resistance!!
Spec
- Applicable Tube Inner Diameter (mm): 3
- Total length (mm): 32.5
- Case thickness (mm): 7.7
- Body Maximum Diameter: 19.5φ
- Maximum Diameter of Connection Part: 4.5φ
- Connector Tip Diameter: 3.2φ
- Connection Inner Diameter: 1.9φ
- Pressure (kPa): not more than 400
- Material (Body): PP
- Material (Mesh): SUS316 (100 Mesh)
- Mesh ***d: Wire diameter 0.1 mm with mesh opening 154μM
- Weight: 1.8 g (1)
