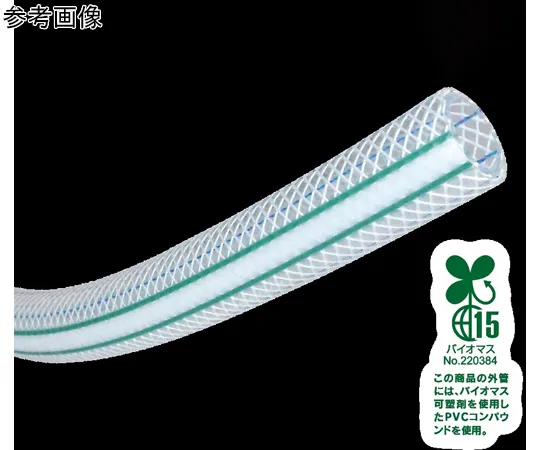

67-6641-99 TOYOBIOPRO Hose Inner Diameter 15 mm x Outer Diameter 22 mm Length 1 m TBP-15
Product Description
Product Model: 67-6641-99Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 67-6641-99
Product Brand: TOYOX CO., LTD.
Features
- Biomass materials: Next-generation hoses made from natural resources and designed to protect the global environment
- Multi-Purpose Resin Hose: Supports Various Fluids such as Water, Oil, Chemicals, and Air
- Improved maintainability: Transparency is good and fluid can be checked for peace of mind.
- Long life: Inner surface has excellent oil resistance, increasing durability (almost the same performance as conventional Toyoron Blade TR)
- Flexible: Easy to cut and pipe hoses and easy to insert fittings
- Compliant with laws and regulations, safe and secure: Compliant with RoHS2 revised regulations (as of August 2023)
Spec
- Inner Diameter x Outer Diameter (mm): 15 x 22
- Regular measure (m): 100
- Working Pressure (MPa): 0~1.0 (23°C)/0~0.8 (60°C)
- Operating temperature range (°C): -5~60
- Minimum b*** radius (mm): 105
- Main Material: Soft Vinyl Chloride
- Stiffener: Polyester Thread
- Coloring: Green with transparent line + Blue with warp
- Application: Pressure resistant hose for general piping, oil resistance, plant piping and various mechanical piping
