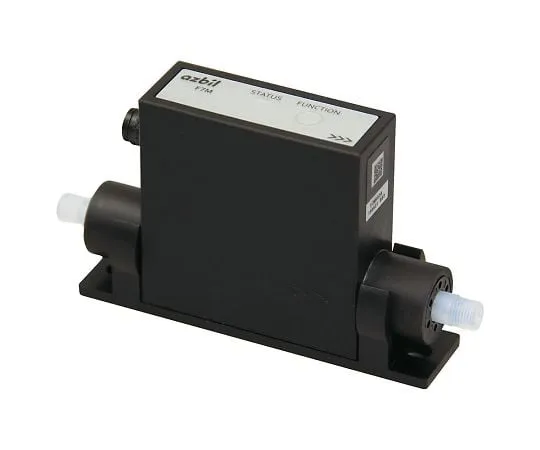

4-2994-01 Thermal Microliquid flow rate Meter (Model F7M) 10 mL/min F7M9010AQ10010000
Product Description
Product Model: 4-2994-01Product Brand: Azbil Corporatio […]
Contact Us
Product Details
Product Model: 4-2994-01
Product Brand: Azbil Corporation
Features
- Can measure small flow rates of several mL/min.
- It has a straight flow path with little pressure loss and no liquid pools, and excellent cleanliness.
- Compact and lightweight for easy installation.
- The wet part is made of corrosion-resistant quartz glass and fluororesin, which can be ***d for various fluids.
Spec
- Specifications: Measuring flow rate Range 10 mL/min
- test results report: -
- Connection Method: Japan Pillar Industry Super 300 Type P Series outer diameter Φ3 mm inner diameter Φ2 mm
- Measurable fluid: fluid that does not clog the flow path, damage the glass tube, or damage the wetted material.
- Accuracy guaranteed fluid: H2O (water)
- Measurable flow rate Range: 0.1 to 11.5 mL/min
- Accuracy Assurance flow rate Range: 0.2 to 10 mL/min
- Protected grade – IP 65
- Drive Voltage power supply: DC24V ± 10% 0.7 W or Less
- *Download the PC loader software from the Azbil website (COMPO CLUB) (https://www.compoclub.com).
